固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DPO-0.5-470FIXED IND 470UH 500MA 322MOHM TH Talema Group LLC |
0 | - |
|
数据表 |
DP | Radial, Vertical (Open) | Tray | Active | Toroidal | - | - | 500 mA | - | - | Unshielded | 322mOhm Max | 470 µH | - | - | Through Hole | - | 0.787" Dia x 0.354" W (20.00mm x 9.00mm) | - | -40°C ~ 125°C | 10 kHz | - |
|
DPO-0.5-150FIXED IND 150UH 500MA 173MOHM TH Talema Group LLC |
0 | - |
|
数据表 |
DP | Radial, Vertical (Open) | Tray | Active | Toroidal | - | - | 500 mA | - | - | Unshielded | 173mOhm Max | 150 µH | - | - | Through Hole | - | 0.591" Dia x 0.315" W (15.00mm x 8.00mm) | - | -40°C ~ 125°C | 10 kHz | - |
|
DPO-1.0-100FIXED IND 100UH 1A 97 MOHM TH Talema Group LLC |
0 | - |
|
数据表 |
DP | Radial, Vertical (Open) | Tray | Active | Toroidal | - | - | 1 A | - | - | Unshielded | 97mOhm Max | 100 µH | - | - | Through Hole | - | 0.591" Dia x 0.315" W (15.00mm x 8.00mm) | - | -40°C ~ 125°C | 10 kHz | - |
|
DPO-2.0-68FIXED IND 68UH 2A 89 MOHM TH Talema Group LLC |
0 | - |
|
数据表 |
DP | Radial, Vertical (Open) | Tray | Active | Toroidal | - | - | 2 A | - | - | Unshielded | 89mOhm Max | 68 µH | - | - | Through Hole | - | 0.591" Dia x 0.315" W (15.00mm x 8.00mm) | - | -40°C ~ 125°C | 10 kHz | - |
|
DPO-0.5-220FIXED IND 220UH 500MA 215MOHM TH Talema Group LLC |
0 | - |
|
数据表 |
DP | Radial, Vertical (Open) | Tray | Active | Toroidal | - | - | 500 mA | - | - | Unshielded | 215mOhm Max | 220 µH | - | - | Through Hole | - | 0.591" Dia x 0.354" W (15.00mm x 9.00mm) | - | -40°C ~ 125°C | 10 kHz | - |
|

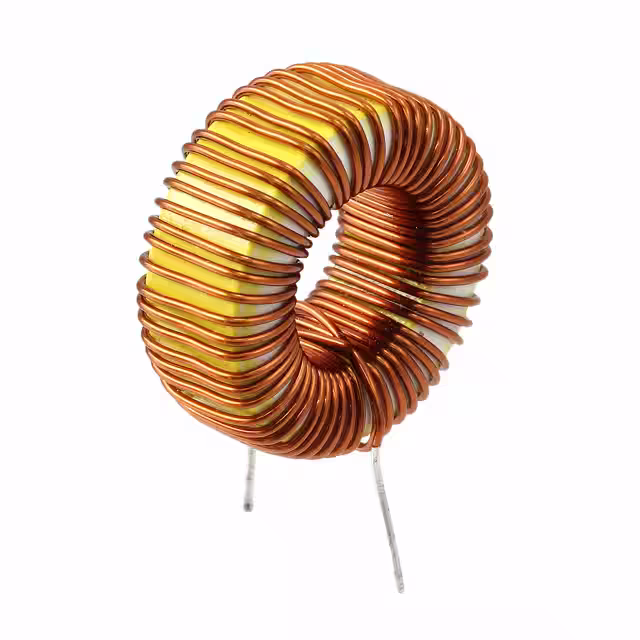

DPO-2.0-150FIXED IND 150UH 2A 106 MOHM TH Talema Group LLC |
0 | - |
|
数据表 |
DP | Radial, Vertical (Open) | Tray | Active | Toroidal | - | - | 2 A | - | - | Unshielded | 106mOhm Max | 150 µH | - | - | Through Hole | - | 0.984" Dia x 0.472" W (25.00mm x 12.00mm) | - | -40°C ~ 125°C | 10 kHz | - |
|

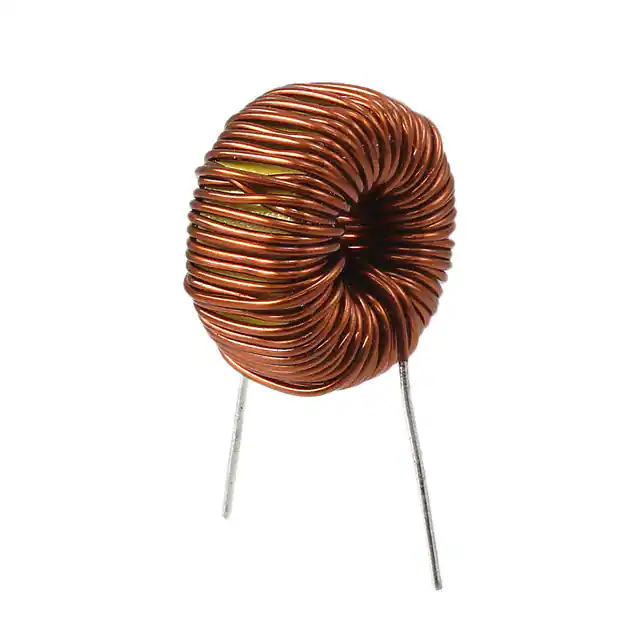

DPO-1.0-150FIXED IND 150UH 1A 123 MOHM TH Talema Group LLC |
0 | - |
|
数据表 |
DP | Radial, Vertical (Open) | Tray | Active | Toroidal | - | - | 1 A | - | - | Unshielded | 123mOhm Max | 150 µH | - | - | Through Hole | - | 0.591" Dia x 0.354" W (15.00mm x 9.00mm) | - | -40°C ~ 125°C | 10 kHz | - |
|
DPO-1.0-220FIXED IND 220UH 1A 196 MOHM TH Talema Group LLC |
0 | - |
|
数据表 |
DP | Radial, Vertical (Open) | Tray | Active | Toroidal | - | - | 1 A | - | - | Unshielded | 196mOhm Max | 220 µH | - | - | Through Hole | - | 0.591" Dia x 0.354" W (15.00mm x 9.00mm) | - | -40°C ~ 125°C | 10 kHz | - |
|

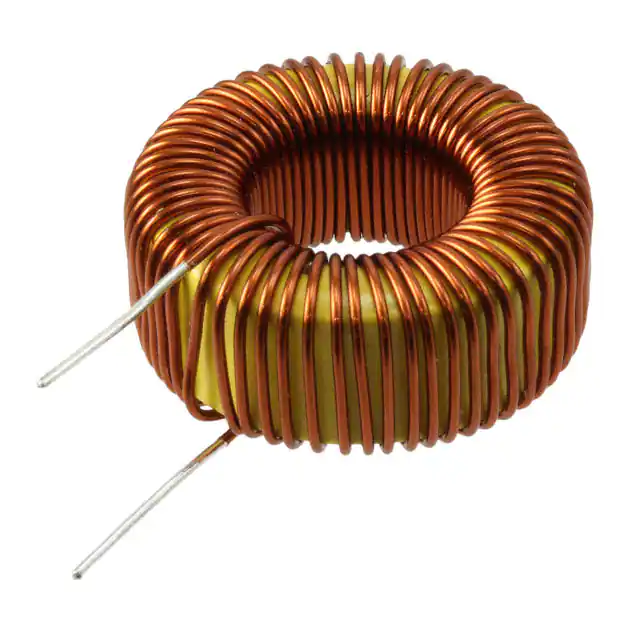

DPO-3.0-150FIXED IND 150UH 3A 107 MOHM TH Talema Group LLC |
0 | - |
|
数据表 |
DP | Radial, Vertical (Open) | Tray | Active | Toroidal | - | - | 3 A | - | - | Unshielded | 107mOhm Max | 150 µH | - | - | Through Hole | - | 0.984" Dia x 0.472" W (25.00mm x 12.00mm) | - | -40°C ~ 125°C | 10 kHz | - |
|
DPO-0.5-330FIXED IND 330UH 500MA 265MOHM TH Talema Group LLC |
0 | - |
|
数据表 |
DP | Radial, Vertical (Open) | Tray | Active | Toroidal | - | - | 500 mA | - | - | Unshielded | 265mOhm Max | 330 µH | - | - | Through Hole | - | 0.591" Dia x 0.354" W (15.00mm x 9.00mm) | - | -40°C ~ 125°C | 10 kHz | - |
