固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
29L102CFIXED IND 1UH 4.6A 13 MOHM SMD Murata Power Solutions Inc. |
0 | - |
|
数据表 |
2900L | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | - | 4.6 A | - | - | Shielded | 13mOhm Max | 1 µH | - | - | Surface Mount | - | 0.283" L x 0.283" W (7.20mm x 7.20mm) | - | -40°C ~ 85°C | 10 kHz | 0.124" (3.15mm) |
|
|
29L103CFIXED IND 10UH 1.55A 64 MOHM SMD Murata Power Solutions Inc. |
0 | - |
|
数据表 |
2900L | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | - | 1.55 A | - | - | Shielded | 64mOhm Max | 10 µH | - | - | Surface Mount | - | 0.283" L x 0.283" W (7.20mm x 7.20mm) | - | -40°C ~ 85°C | 10 kHz | 0.124" (3.15mm) |
|
|
29L104CFIXED IND 100UH 480MA 456MOHM SM Murata Power Solutions Inc. |
0 | - |
|
数据表 |
2900L | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | - | 480 mA | - | - | Shielded | 456mOhm Max | 100 µH | - | - | Surface Mount | - | 0.283" L x 0.283" W (7.20mm x 7.20mm) | - | -40°C ~ 85°C | 10 kHz | 0.124" (3.15mm) |
|
|
29L332CFIXED IND 3.3UH 2.6A 25 MOHM SMD Murata Power Solutions Inc. |
0 | - |
|
数据表 |
2900L | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | - | 2.6 A | - | - | Shielded | 25mOhm Max | 3.3 µH | - | - | Surface Mount | - | 0.283" L x 0.283" W (7.20mm x 7.20mm) | - | -40°C ~ 85°C | 10 kHz | 0.124" (3.15mm) |
|
|
29L472CFIXED IND 4.7UH 2.2A 31 MOHM SMD Murata Power Solutions Inc. |
0 | - |
|
数据表 |
2900L | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | - | 2.2 A | - | - | Shielded | 31mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.283" L x 0.283" W (7.20mm x 7.20mm) | - | -40°C ~ 85°C | 10 kHz | 0.124" (3.15mm) |
|
|
29L474CFIXED IND 470UH 220MA 2.41OHM SM Murata Power Solutions Inc. |
0 | - |
|
数据表 |
2900L | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | - | 220 mA | - | - | Shielded | 2.41Ohm Max | 470 µH | - | - | Surface Mount | - | 0.283" L x 0.283" W (7.20mm x 7.20mm) | - | -40°C ~ 85°C | 10 kHz | 0.124" (3.15mm) |
|

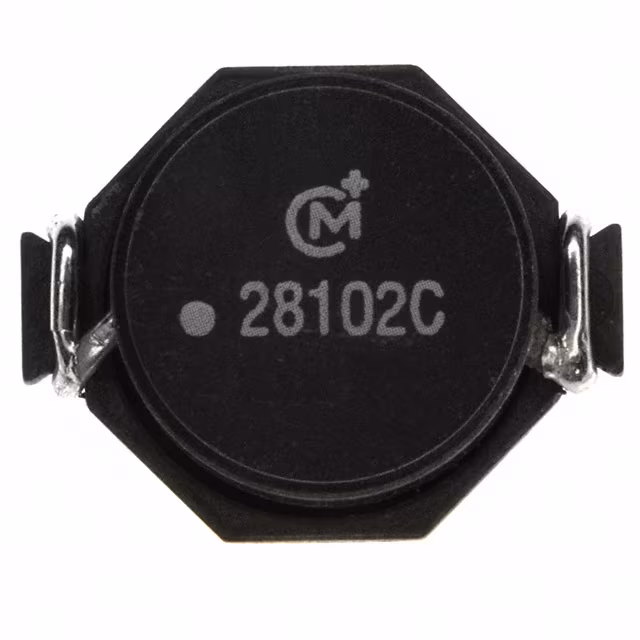

28102CFIXED IND 1UH 15.5A 2.6 MOHM SMD Murata Power Solutions Inc. |
0 | - |
|
数据表 |
2800 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | - | 15.5 A | - | - | Unshielded | 2.6mOhm Max | 1 µH | 45.6 @ 1MHz | 104MHz | Surface Mount | - | 0.728" L x 0.598" W (18.50mm x 15.20mm) | - | -40°C ~ 125°C | 1 MHz | 0.299" (7.60mm) |
|

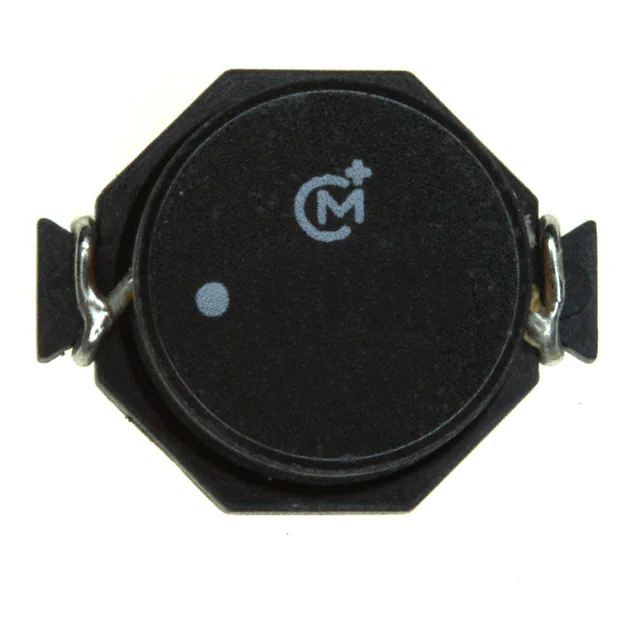

28103CFIXED IND 10UH 5.9A 18 MOHM SMD Murata Power Solutions Inc. |
0 | - |
|
数据表 |
2800 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | - | 5.9 A | - | - | Unshielded | 18mOhm Max | 10 µH | 31.1 @ 1MHz | 22.5MHz | Surface Mount | - | 0.728" L x 0.598" W (18.50mm x 15.20mm) | - | -40°C ~ 125°C | 10 kHz | 0.299" (7.60mm) |
|

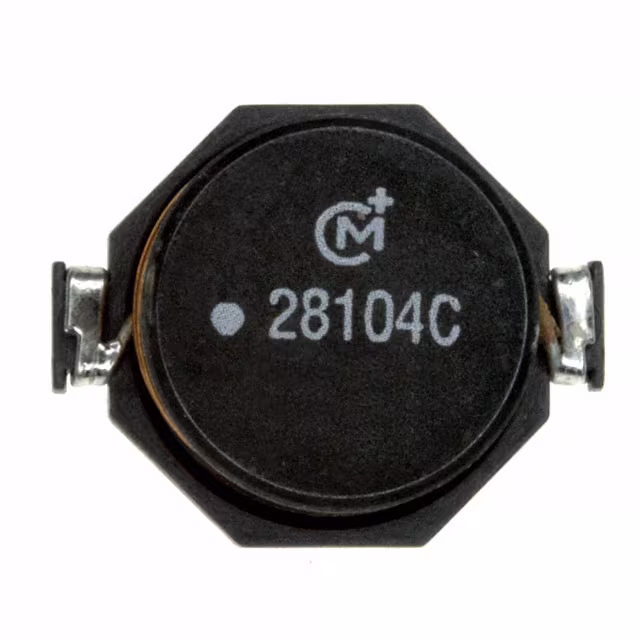

28104CFIXED IND 100UH 1.8A 174MOHM SMD Murata Power Solutions Inc. |
0 | - |
|
数据表 |
2800 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | - | 1.8 A | - | - | Unshielded | 174mOhm Max | 100 µH | 21.4 @ 800kHz | 7.7MHz | Surface Mount | - | 0.728" L x 0.598" W (18.50mm x 15.20mm) | - | -40°C ~ 125°C | 800 kHz | 0.299" (7.60mm) |
|

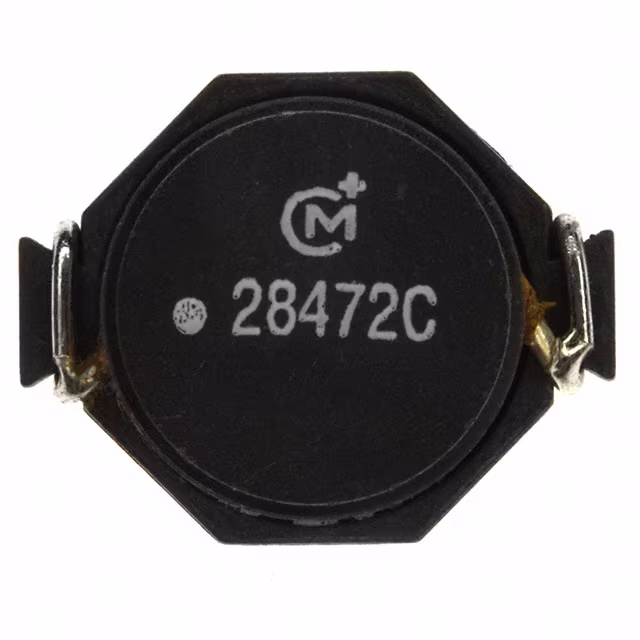

28472CFIXED IND 4.7UH 8.3A 10 MOHM SMD Murata Power Solutions Inc. |
0 | - |
|
数据表 |
2800 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | - | 8.3 A | - | - | Unshielded | 10mOhm Max | 4.7 µH | 33.3 @ 1MHz | 37MHz | Surface Mount | - | 0.728" L x 0.598" W (18.50mm x 15.20mm) | - | -40°C ~ 125°C | 1 MHz | 0.299" (7.60mm) |
