固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

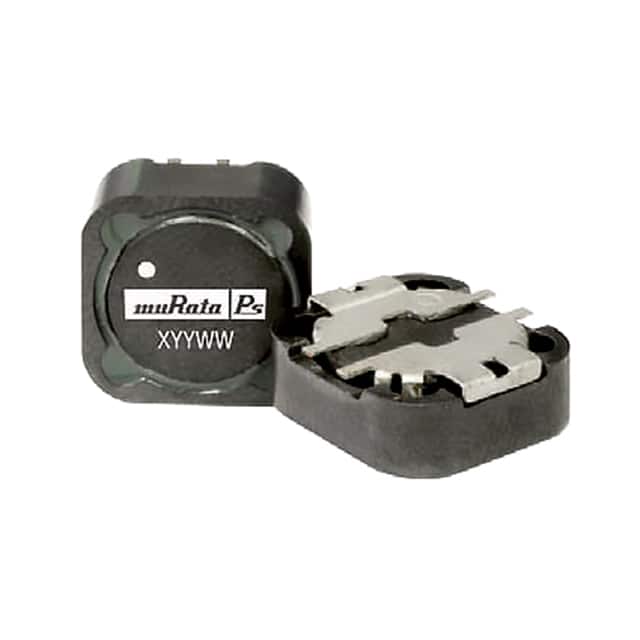

471R0SCFIXED IND 1UH 10A 4.8 MOHM SMD Murata Power Solutions Inc. |
0 | - |
|
数据表 |
4700S | Nonstandard, 4 Lead | Tape & Reel (TR) | Obsolete | Wirewound | - | ±30% | 10 A | - | - | Shielded | 4.8mOhm Max | 1 µH | 24 @ 1MHz | 79MHz | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | - | -40°C ~ 85°C | 10 kHz | 0.197" (5.00mm) |
|
|
472R2SCFIXED IND 2.2UH 7A 8.5 MOHM SMD Murata Power Solutions Inc. |
0 | - |
|
数据表 |
4700S | Nonstandard, 4 Lead | Tape & Reel (TR) | Obsolete | Wirewound | - | ±30% | 7 A | - | - | Shielded | 8.5mOhm Max | 2.2 µH | 24 @ 1MHz | 44MHz | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | - | -40°C ~ 85°C | 10 kHz | 0.197" (5.00mm) |
|
|
47331SCFIXED IND 330UH 700MA 940MOHM SM Murata Power Solutions Inc. |
0 | - |
|
数据表 |
4700S | Nonstandard, 4 Lead | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 700 mA | - | - | Shielded | 940mOhm Max | 330 µH | 21 @ 800kHz | 5MHz | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | - | -40°C ~ 85°C | 10 kHz | 0.197" (5.00mm) |
|
|
473R3SCFIXED IND 3.3UH 6.4A 11.1MOHM SM Murata Power Solutions Inc. |
0 | - |
|
数据表 |
4700S | Nonstandard, 4 Lead | Tape & Reel (TR) | Obsolete | Wirewound | - | ±30% | 6.4 A | - | - | Shielded | 11.1mOhm Max | 3.3 µH | 25 @ 1MHz | 36MHz | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | - | -40°C ~ 85°C | 10 kHz | 0.197" (5.00mm) |
|
|
47471SCFIXED IND 470UH 580MA 1.33OHM SM Murata Power Solutions Inc. |
0 | - |
|
数据表 |
4700S | Nonstandard, 4 Lead | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 580 mA | - | - | Shielded | 1.33Ohm Max | 470 µH | 23 @ 800kHz | 5MHz | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | - | -40°C ~ 85°C | 10 kHz | 0.197" (5.00mm) |
|
|
474R7SCFIXED IND 4.7UH 5.8A 16.4MOHM SM Murata Power Solutions Inc. |
0 | - |
|
数据表 |
4700S | Nonstandard, 4 Lead | Tape & Reel (TR) | Obsolete | Wirewound | - | ±30% | 5.8 A | - | - | Shielded | 16.4mOhm Max | 4.7 µH | 25 @ 1MHz | 34MHz | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | - | -40°C ~ 85°C | 10 kHz | 0.197" (5.00mm) |
|
|
47680SCFIXED IND 68UH 1.6A 210MOHM SMD Murata Power Solutions Inc. |
0 | - |
|
数据表 |
4700S | Nonstandard, 4 Lead | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 1.6 A | - | - | Shielded | 210mOhm Max | 68 µH | 23 @ 1MHz | 9MHz | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | - | -40°C ~ 85°C | 10 kHz | 0.197" (5.00mm) |
|
|
476R8SCFIXED IND 6.8UH 4.6A 26.9MOHM SM Murata Power Solutions Inc. |
0 | - |
|
数据表 |
4700S | Nonstandard, 4 Lead | Tape & Reel (TR) | Obsolete | Wirewound | - | ±30% | 4.6 A | - | - | Shielded | 26.9mOhm Max | 6.8 µH | 24 @ 1MHz | 24MHz | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | - | -40°C ~ 85°C | 10 kHz | 0.197" (5.00mm) |
|
29L152CFIXED IND 1.5UH 4.2A 15MOHM SMD Murata Power Solutions Inc. |
0 | - |
|
数据表 |
2900L | Nonstandard, Corner Terminals | Tape & Reel (TR) | Obsolete | Wirewound | - | - | 4.2 A | - | - | Shielded | 15mOhm Max | 1.5 µH | - | - | Surface Mount | - | 0.283" L x 0.283" W (7.20mm x 7.20mm) | - | -40°C ~ 85°C | 10 kHz | 0.124" (3.15mm) |
|
|
29L153CFIXED IND 15UH 1.23A 84MOHM SMD Murata Power Solutions Inc. |
0 | - |
|
数据表 |
2900L | Nonstandard, Corner Terminals | Tape & Reel (TR) | Obsolete | Wirewound | - | - | 1.23 A | - | - | Shielded | 84mOhm Max | 15 µH | - | - | Surface Mount | - | 0.283" L x 0.283" W (7.20mm x 7.20mm) | - | -40°C ~ 85°C | 10 kHz | 0.124" (3.15mm) |
