固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPL-AL5050-8R2FIXED IND 8.2UH 5.8A 28 MOHM SMD Monolithic Power Systems Inc. |
7,374 | - |
|
数据表 |
MPL-AL | 2-SMD | Tape & Reel (TR) | Active | Molded | - | - | 5.8 A | 7.2A | - | Unshielded | 28mOhm | 8.2 µH | - | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | - | -40°C ~ 155°C | 100 kHz | 0.197" (5.00mm) |
|
|
MPL-AL5050-5R6FIXED IND 5.6UH 6.8A 20 MOHM SMD Monolithic Power Systems Inc. |
1,637 | - |
|
数据表 |
MPL-AL | 2-SMD | Tape & Reel (TR) | Active | Molded | - | - | 6.8 A | 8A | - | Unshielded | 20mOhm | 5.6 µH | - | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | - | -40°C ~ 155°C | 100 kHz | 0.197" (5.00mm) |
|

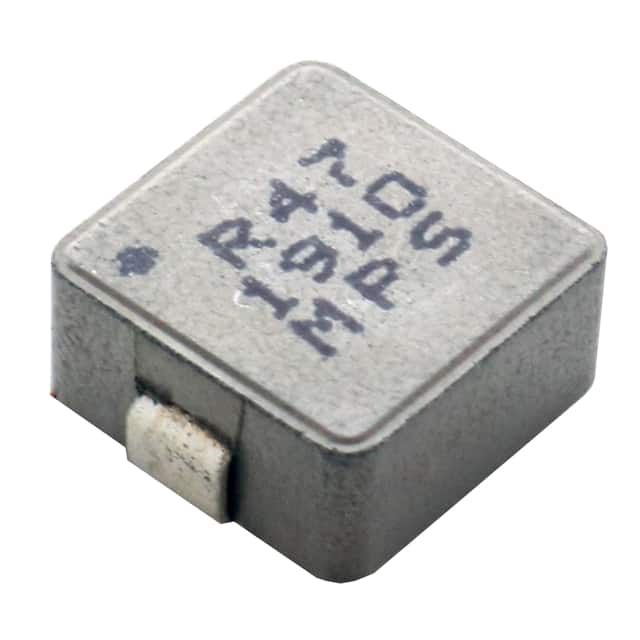

MPL-AY1050-1R0FIXED IND 1UH 19A 2.6 MOHM SMD Monolithic Power Systems Inc. |
1,490 | - |
|
数据表 |
MPL-AY | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | - | - | 19 A | 33A | - | Unshielded | 2.6mOhm | 1 µH | - | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | - | -40°C ~ 155°C | 100 kHz | 0.197" (5.00mm) |
|
|
MPL-AY1050-5R6FIXED IND 5.6UH 9.8A 13 MOHM SMD Monolithic Power Systems Inc. |
396 | - |
|
数据表 |
MPL-AY | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | - | - | 9.8 A | 14A | - | Unshielded | 13mOhm | 5.6 µH | - | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | - | -40°C ~ 155°C | 100 kHz | 0.197" (5.00mm) |
|
MPL-AL6060-100FIXED IND 10UH 6.9A 24 MOHM SMD Monolithic Power Systems Inc. |
625 | - |
|
数据表 |
MPL-AL | 2-SMD | Tape & Reel (TR) | Active | Molded | - | - | 6.9 A | 6.6A | - | Unshielded | 24mOhm | 10 µH | - | - | Surface Mount | - | 0.260" L x 0.252" W (6.60mm x 6.40mm) | - | -40°C ~ 155°C | 100 kHz | 0.236" (6.00mm) |
|
MPL-AY1265-220FIXED IND 22UH 7A 31.4 MOHM SMD Monolithic Power Systems Inc. |
723 | - |
|
数据表 |
MPL-AY | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | - | - | 7 A | 9A | - | Unshielded | 31.4mOhm | 22 µH | - | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | - | -40°C ~ 155°C | 100 kHz | 0.256" (6.50mm) |
|
MPL-AL4020-2R2FIXED IND 2.2UH 5.5A 21.5MOHM SM Monolithic Power Systems Inc. |
5,360 | - |
|
数据表 |
MPL-AL | 2-SMD | Tape & Reel (TR) | Active | Molded | - | - | 5.5 A | 6.2A | - | Unshielded | 21.5mOhm | 2.2 µH | - | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | - | -40°C ~ 155°C | 100 kHz | 0.083" (2.10mm) |
|
MPL-AL5030-4R7FIXED IND 4.7UH 5.3A 33 MOHM SMD Monolithic Power Systems Inc. |
1,115 | - |
|
数据表 |
MPL-AL | 2-SMD | Tape & Reel (TR) | Active | Molded | - | - | 5.3 A | 8A | - | Unshielded | 33mOhm | 4.7 µH | - | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | - | -40°C ~ 155°C | 100 kHz | 0.122" (3.10mm) |
|
|
MPL-AL5050-100FIXED IND 10UH 4.8A 37 MOHM SMD Monolithic Power Systems Inc. |
3,781 | - |
|
数据表 |
MPL-AL | 2-SMD | Tape & Reel (TR) | Active | Molded | - | - | 4.8 A | 5.5A | - | Unshielded | 37mOhm | 10 µH | - | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | - | -40°C ~ 155°C | 100 kHz | 0.197" (5.00mm) |
|
|
MPL-AL6060-150FIXED IND 15UH 5.8A 35 MOHM SMD Monolithic Power Systems Inc. |
3,192 | - |
|
数据表 |
MPL-AL | 2-SMD | Tape & Reel (TR) | Active | Molded | - | - | 5.8 A | 5.5A | - | Unshielded | 35mOhm | 15 µH | - | - | Surface Mount | - | 0.260" L x 0.252" W (6.60mm x 6.40mm) | - | -40°C ~ 155°C | 100 kHz | 0.236" (6.00mm) |
