阵列、信号变压器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 线圈数量 | 电感 - 并联连接 | 容差 | 电流额定值 - 并联 | 电流额定值 - 串联 | 高度 | 饱和电流 - 并联 | 饱和电流 - 串联 | 电感 - 串联连接 | 直流电阻 (DCR) - 并联 | 直流电阻 (DCR) - 串联 | 尺寸 / 尺寸 | 屏蔽 | 安装类型 | 额定值 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTX0.68-4A-RINDUCT ARRAY 2 COIL 744NH SMD |
0 | - |
|
数据表 |
OCTA-PAC® PLUS | Nonstandard | Tape & Reel (TR) | Active | 2 | 744 nH | ±25% | 10.6 A | 5.28 A | 0.250" (6.35mm) | 15 A | 7.5 A | 2.98 µH | 4mOhm Max | 15.8mOhm Max | 0.550" L x 0.550" W (13.97mm x 13.97mm) | Unshielded | Surface Mount | - | -40°C ~ 85°C |
|
|
CTX1-4A-RINDUCT ARRAY 2 COIL 1.39UH SMD |
0 | - |
|
数据表 |
OCTA-PAC® PLUS | Nonstandard | Tape & Reel (TR) | Active | 2 | 1.39 µH | ±25% | 9.23 A | 4.62 A | 0.250" (6.35mm) | 11.25 A | 5.63 A | 5.57 µH | 5.2mOhm Max | 20.7mOhm Max | 0.550" L x 0.550" W (13.97mm x 13.97mm) | Unshielded | Surface Mount | - | -40°C ~ 85°C |
|
|
CTX150-2-RINDUCT ARRAY 2 COIL 147.39UH SMD |
0 | - |
|
数据表 |
OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 147.39 µH | ±20% | 430 mA | 220 mA | 0.235" (5.97mm) | - | - | 589.57 µH | 560mOhm Max | 2.241Ohm Max | 0.450" L x 0.450" W (11.43mm x 11.43mm) | Unshielded | Surface Mount | - | -40°C ~ 85°C |
|
|
CTX200-2-RINDUCT ARRAY 2 COIL 198.58UH SMD |
0 | - |
|
数据表 |
OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 198.58 µH | ±20% | 390 mA | 200 mA | 0.235" (5.97mm) | - | - | 794.3 µH | 796mOhm Max | 3.184Ohm Max | 0.450" L x 0.450" W (11.43mm x 11.43mm) | Unshielded | Surface Mount | - | -40°C ~ 85°C |
|
|
CTX25-2-RINDUCT ARRAY 2 COIL 24.86UH SMD |
0 | - |
|
数据表 |
OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 24.86 µH | ±20% | 1 A | 500 mA | 0.235" (5.97mm) | - | - | 99.45 µH | 117mOhm Max | 466mOhm Max | 0.450" L x 0.450" W (11.43mm x 11.43mm) | Unshielded | Surface Mount | - | -40°C ~ 85°C |
|
|
CTX68-2-RINDUCT ARRAY 2 COIL 67.87UH SMD |
0 | - |
|
数据表 |
OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 67.87 µH | ±20% | 780 mA | 390 mA | 0.235" (5.97mm) | - | - | 271.47 µH | 303mOhm Max | 1.214Ohm Max | 0.450" L x 0.450" W (11.43mm x 11.43mm) | Unshielded | Surface Mount | - | -40°C ~ 85°C |
|
|
CTX200-4A-RINDUCT ARRAY 2 COIL 200.4UH SMD |
0 | - |
|
数据表 |
OCTA-PAC® PLUS | Nonstandard | Tape & Reel (TR) | Active | 2 | 200.4 µH | ±25% | 920 mA | 460 mA | 0.250" (6.35mm) | 940 mA | 470 mA | 801.8 µH | 521mOhm Max | 2.085Ohm Max | 0.550" L x 0.550" W (13.97mm x 13.97mm) | Unshielded | Surface Mount | - | -40°C ~ 85°C |
|

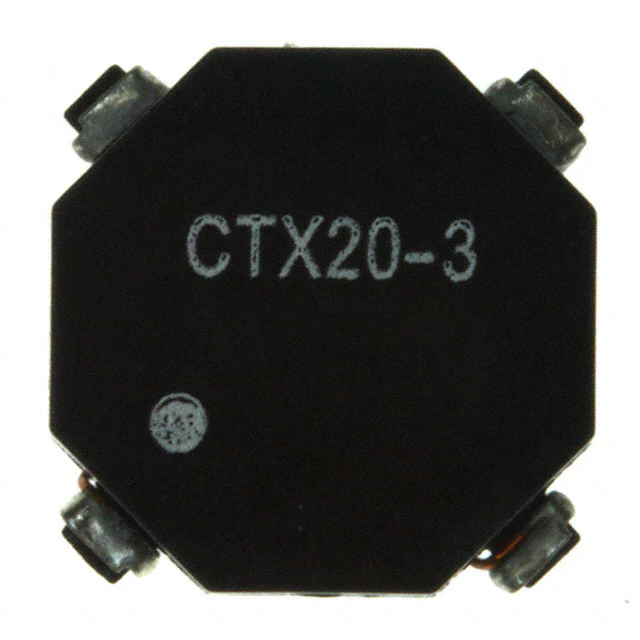

CTX20-3-RINDUCT ARRAY 2 COIL 20.18UH SMD |
0 | - |
|
数据表 |
OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 20.18 µH | ±20% | 1.5 A | 750 mA | 0.190" (4.83mm) | - | - | 80.74 µH | 78mOhm Max | 312mOhm Max | 0.550" L x 0.550" W (13.97mm x 13.97mm) | Unshielded | Surface Mount | - | -40°C ~ 85°C |
|
|
CTX150-3P-RINDUCT ARRAY 2 COIL 149.85UH SMD |
0 | - |
|
数据表 |
Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 149.85 µH | ±20% | 640 mA | 320 mA | 0.190" (4.83mm) | - | - | 599.4 µH | 621mOhm Max | 2.483Ohm Max | 0.550" L x 0.550" W (13.97mm x 13.97mm) | Unshielded | Surface Mount | - | -40°C ~ 85°C |
|
|
CTX150-3-RINDUCT ARRAY 2 COIL 149.78UH SMD |
0 | - |
|
数据表 |
OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 149.78 µH | ±20% | 380 mA | 190 mA | 0.190" (4.83mm) | - | - | 599.14 µH | 430mOhm Max | 1.718Ohm Max | 0.550" L x 0.550" W (13.97mm x 13.97mm) | Unshielded | Surface Mount | - | -40°C ~ 85°C |
|
|
CTX15-3-RINDUCT ARRAY 2 COIL 15UH SMD |
0 | - |
|
数据表 |
OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 15 µH | ±20% | 2 A | 1 A | 0.190" (4.83mm) | - | - | 60 µH | 43mOhm Max | 172mOhm Max | 0.550" L x 0.550" W (13.97mm x 13.97mm) | Unshielded | Surface Mount | - | -40°C ~ 85°C |
|
|
CTX25-3-RINDUCT ARRAY 2 COIL 24.58UH SMD |
0 | - |
|
数据表 |
OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 24.58 µH | ±20% | 980 mA | 490 mA | 0.190" (4.83mm) | - | - | 98.3 µH | 86mOhm Max | 346mOhm Max | 0.550" L x 0.550" W (13.97mm x 13.97mm) | Unshielded | Surface Mount | - | -40°C ~ 85°C |
|
|
CTX300-3-RINDUCT ARRAY 2 COIL 301.06UH SMD |
0 | - |
|
数据表 |
OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 301.06 µH | ±20% | 400 mA | 200 mA | 0.190" (4.83mm) | - | - | 1.2 mH | 951mOhm Max | 3.083Ohm Max | 0.550" L x 0.550" W (13.97mm x 13.97mm) | Unshielded | Surface Mount | - | -40°C ~ 85°C |
|
|
CTX50-3-RINDUCT ARRAY 2 COIL 50.78UH SMD |
0 | - |
|
数据表 |
OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 50.78 µH | ±20% | 940 mA | 470 mA | 0.190" (4.83mm) | - | - | 203.14 µH | 239mOhm Max | 956mOhm Max | 0.550" L x 0.550" W (13.97mm x 13.97mm) | Unshielded | Surface Mount | - | -40°C ~ 85°C |
|
|
CTX68-3-RINDUCT ARRAY 2 COIL 67.42UH SMD |
0 | - |
|
数据表 |
OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 67.42 µH | ±20% | 800 mA | 400 mA | 0.190" (4.83mm) | - | - | 269.66 µH | 277mOhm Max | 1.109Ohm Max | 0.550" L x 0.550" W (13.97mm x 13.97mm) | Unshielded | Surface Mount | - | -40°C ~ 85°C |
|

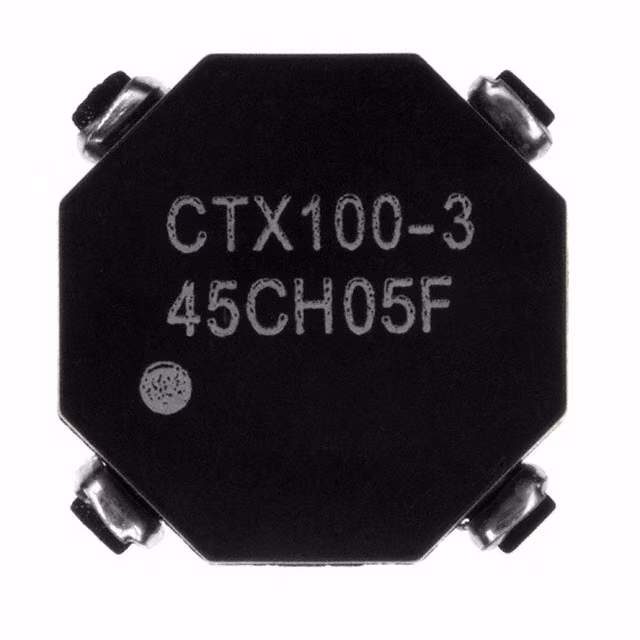

CTX100-3-RINDUCT ARRAY 2 COIL 101.4UH SMD |
0 | - |
|
数据表 |
OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 101.4 µH | ±20% | 700 mA | 350 mA | 0.190" (4.83mm) | - | - | 405.6 µH | 345mOhm Max | 1.381Ohm Max | 0.550" L x 0.550" W (13.97mm x 13.97mm) | Unshielded | Surface Mount | - | -40°C ~ 85°C |
|
|
CTX25-2PINDUCT ARRAY 2 COIL 24.79UH SMD |
0 | - |
|
数据表 |
Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Obsolete | 2 | 24.79 µH | ±20% | 1.4 A | 700 mA | 0.235" (5.97mm) | - | - | 99.14 µH | 109mOhm Max | 436mOhm Max | 0.450" L x 0.450" W (11.43mm x 11.43mm) | Unshielded | Surface Mount | - | -40°C ~ 85°C |
|
|
CTX0.47-4-RINDUCT ARRAY 2 COIL 440NH SMD |
0 | - |
|
数据表 |
OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 440 nH | ±20% | 7 A | 3.5 A | 0.250" (6.35mm) | - | - | 1.76 µH | 4mOhm Max | 16mOhm Max | 0.550" L x 0.550" W (13.97mm x 13.97mm) | Unshielded | Surface Mount | - | -40°C ~ 85°C |
|
|
CTX0.68-4-RINDUCT ARRAY 2 COIL 780NH SMD |
0 | - |
|
数据表 |
OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 780 nH | ±20% | 6 A | 3 A | 0.250" (6.35mm) | - | - | 3.14 µH | 5mOhm Max | 20mOhm Max | 0.550" L x 0.550" W (13.97mm x 13.97mm) | Unshielded | Surface Mount | - | -40°C ~ 85°C |
|
|
CTX1-4-RINDUCT ARRAY 2 COIL 1.23UH SMD |
0 | - |
|
数据表 |
OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 1.23 µH | ±20% | 5 A | 2.5 A | 0.250" (6.35mm) | - | - | 4.9 µH | 6mOhm Max | 24mOhm Max | 0.550" L x 0.550" W (13.97mm x 13.97mm) | Unshielded | Surface Mount | - | -40°C ~ 85°C |
