交流直流桌面、墙式电源适配器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 特性 | 功率（瓦特） | 空载功耗 | 输入类型 | 极化 | 应用 | 输入连接器 | 效率 | 尺寸 / 尺寸 | 电线长度 | 工作温度 | 输出连接器 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDI36-15-UD-P5RAC/DC DESKTOP ADAPTER 15V 36W |
0 | - |
|
数据表 |
SDI36-UD (36W) | Box | Active | International | Desktop (Class II) | 90 ~ 264 VAC | 15V | 2.4A | - | 36 W | 75mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C8 | Level VI, CoC Tier 2 | 3.90" L x 1.97" W x 1.30" H (99.0mm x 50.0mm x 33.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | |
|
|
SDI36-15-UD-P6RAC/DC DESKTOP ADAPTER 15V 36W |
0 | - |
|
数据表 |
SDI36-UD (36W) | Box | Active | International | Desktop (Class II) | 90 ~ 264 VAC | 15V | 2.4A | - | 36 W | 75mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C8 | Level VI, CoC Tier 2 | 3.90" L x 1.97" W x 1.30" H (99.0mm x 50.0mm x 33.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | |
|
|
SDI36-24-UD-P5RAC/DC DESKTOP ADAPTER 24V 36W |
0 | - |
|
数据表 |
SDI36-UD (36W) | Box | Active | International | Desktop (Class II) | 90 ~ 264 VAC | 24V | 1.5A | - | 36 W | 75mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C8 | Level VI, CoC Tier 2 | 3.90" L x 1.97" W x 1.30" H (99.0mm x 50.0mm x 33.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | |
|
|
SDI36-24-UD-P6RAC/DC DESKTOP ADAPTER 24V 36W |
0 | - |
|
数据表 |
SDI36-UD (36W) | Box | Active | International | Desktop (Class II) | 90 ~ 264 VAC | 24V | 1.5A | - | 36 W | 75mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C8 | Level VI, CoC Tier 2 | 3.90" L x 1.97" W x 1.30" H (99.0mm x 50.0mm x 33.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | |
|
VEP15US12AC/DC WALL MOUNT ADAPTER 12V 15W |
0 | - |
|
数据表 |
VEP15 (15W) | Box | Obsolete | International | Wall Mount (Class II) | 80 ~ 264 VAC | 12V | 1.25A | - | 15 W | 300mW (Max) | Multi-Blade (Sold Separately) | Positive Center | ITE (Commercial), Medical | Multi-Blade | Level V | 2.95" L x 1.81" W x 1.20" H (75.0mm x 46.0mm x 30.5mm) | 70.9" (1.80m) | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | CB, TUV, UL | |
|

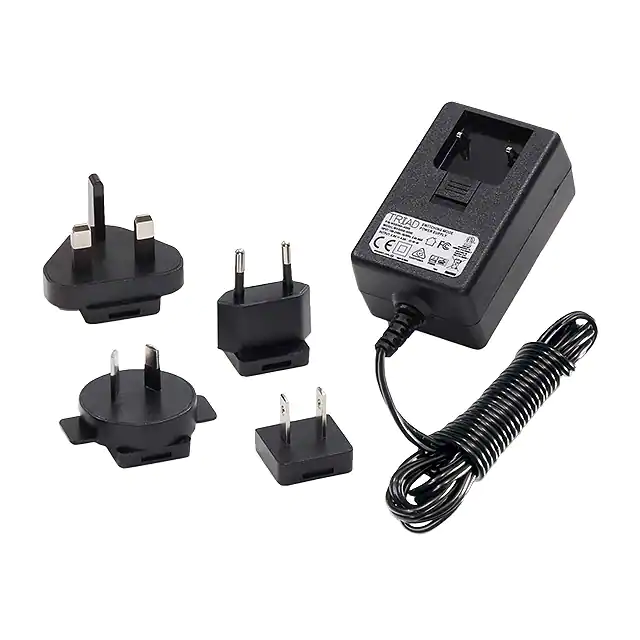

WSX050-4000-RAC/DC WALL MOUNT ADAPTER 5V 20W |
0 | - |
|
数据表 |
WSX | Bulk | Active | International | Wall Mount (Class II) | 90 ~ 264 VAC | 5V | 4A | - | 20 W | 100mW (Max) | Multi-Blade (Included) | Positive Center | ITE (Commercial) | Multi-Blade | Level VI | 3.02" L x 1.87" W x 1.38" H (76.8mm x 47.5mm x 35.0mm) | 48" (1.22m) | 0°C ~ 45°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | CE, cETLus, FCC, GS, RCM | |
|
|
WSX060-4000-RAC/DC WALL MNT ADAPTER 5.9V 24W |
0 | - |
|
数据表 |
WSX | Bulk | Active | International | Wall Mount (Class II) | 90 ~ 264 VAC | 5.9V | 4A | - | 24 W | 100mW (Max) | Multi-Blade (Included) | Negative Center | ITE (Commercial) | Multi-Blade | Level VI | 3.02" L x 1.87" W x 1.38" H (76.8mm x 47.5mm x 35.0mm) | 48" (1.22m) | 0°C ~ 45°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | CE, cETLus, FCC, GS, RCM | |
|
|
WSX075-3200-RAC/DC WALL MNT ADAPTER 7.5V 24W |
0 | - |
|
数据表 |
WSX | Bulk | Active | International | Wall Mount (Class II) | 90 ~ 264 VAC | 7.5V | 3.2A | - | 24 W | 100mW (Max) | Multi-Blade (Included) | Negative Center | ITE (Commercial) | Multi-Blade | Level VI | 3.02" L x 1.87" W x 1.38" H (76.8mm x 47.5mm x 35.0mm) | 48" (1.22m) | 0°C ~ 45°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | CE, cETLus, FCC, GS, RCM | |
|
|
WSX150-1600-RAC/DC WALL MOUNT ADAPTER 15V 24W |
0 | - |
|
数据表 |
WSX | Bulk | Active | International | Wall Mount (Class II) | 90 ~ 264 VAC | 15V | 1.6A | - | 24 W | 100mW (Max) | Multi-Blade (Included) | Negative Center | ITE (Commercial) | Multi-Blade | Level VI | 3.02" L x 1.87" W x 1.38" H (76.8mm x 47.5mm x 35.0mm) | 72" (1.83m) | 0°C ~ 45°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | CE, cETLus, FCC, GS, RCM | |
|
|
WSX180-1330AC/DC WALL MOUNT ADAPTER 18V 24W |
0 | - |
|
数据表 |
WSX | Bulk | Active | International | Wall Mount (Class II) | 90 ~ 264 VAC | 18V | 1.33A | - | 24 W | 100mW (Max) | Multi-Blade (Included) | Positive Center | ITE (Commercial) | Multi-Blade | Level VI | 3.02" L x 1.87" W x 1.38" H (76.8mm x 47.5mm x 35.0mm) | 72" (1.83m) | 0°C ~ 45°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | CE, cETLus, FCC, GS, RCM | |
|
|
WSX180-1330-RAC/DC WALL MOUNT ADAPTER 18V 24W |
0 | - |
|
数据表 |
WSX | Bulk | Active | International | Wall Mount (Class II) | 90 ~ 264 VAC | 18V | 1.33A | - | 24 W | 100mW (Max) | Multi-Blade (Included) | Negative Center | ITE (Commercial) | Multi-Blade | Level VI | 3.02" L x 1.87" W x 1.38" H (76.8mm x 47.5mm x 35.0mm) | 72" (1.83m) | 0°C ~ 45°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | CE, cETLus, FCC, GS, RCM | |
|
WR9QE1500A00-N(R6B)PWR SUPP, BATT, COND |
0 | - |
|
数据表 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
WR9QI1660YL4NKITR6BAC/DC WALL MOUNT ADAPTER 24V 40W |
0 | - |
|
数据表 |
GTM46402-4024 | Bulk | Active | International | Wall Mount (Class II) | 90 ~ 264 VAC | 24V | 1.66A | - | 40 W | 75mW (Max) | Multi-Blade (Sold Separately) | - | Household Appliances, ITE (Commercial), Medical | Multi-Blade | Level VI, CoC Tier 2 | 2.91" L x 1.71" W x 1.39" H (74.0mm x 43.5mm x 35.3mm) | 47.2" (1.20m) | -20°C ~ 40°C | Power DIN, 4 Pin | CB, CCC, CE, cETLus, EAC, ETL, FCC, LPS, PSE, RCM, UKRSepro, UL, VCCI | |
|
VER18US090-JAAC/DC WALL MOUNT ADAPTER 9V 18W |
0 | - |
|
数据表 |
VER18 (18W) | Box | Obsolete | International | Wall Mount (Class II) | 90 ~ 264 VAC | 9V | 2A | - | 18 W | 100mW (Max) | Multi-Blade (Included) | Positive Center | ITE (Commercial) | Multi-Blade | Level VI | 3.54" L x 1.69" W x 1.68" H (90.0mm x 43.0mm x 42.7mm) | 59" (1.50m) | 0°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | CB | |
|
VER18US120-JAAC/DC WALL MOUNT ADAPTER 12V 18W |
0 | - |
|
数据表 |
VER18 (18W) | Box | Obsolete | International | Wall Mount (Class II) | 90 ~ 264 VAC | 12V | 1.5A | - | 18 W | 100mW (Max) | Multi-Blade (Included) | Positive Center | ITE (Commercial) | Multi-Blade | Level VI | 3.54" L x 1.69" W x 1.68" H (90.0mm x 43.0mm x 42.7mm) | 59" (1.50m) | 0°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | CB | |
|
|
VER18US240-JAAC/DC WALL MOUNT ADAPTER 24V 18W |
0 | - |
|
数据表 |
VER18 (18W) | Box | Obsolete | International | Wall Mount (Class II) | 90 ~ 264 VAC | 24V | 750mA | - | 18 W | 100mW (Max) | Multi-Blade (Included) | Positive Center | ITE (Commercial) | Multi-Blade | Level VI | 3.54" L x 1.69" W x 1.68" H (90.0mm x 43.0mm x 42.7mm) | 59" (1.50m) | 0°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | CB | |
|
|
RPS-ICR2-EUPOWER SUPPLY, ICR2, 12V/1A, 6-PI |
0 | - |
|
数据表 |
SYS1381N-W2E (12W) | Bulk | Active | Europe | Wall Mount (Class I) | 90 ~ 264 VAC | 12V | 1A | - | 12 W | - | Fixed Blade | - | ITE (Commercial) | CEE 7/16 | Level VI | 2.48" L x 1.14" W x 2.49" H (63.0mm x 29.0mm x 63.2mm) | 59" (1.50m) | 0°C ~ 40°C | Rectangular, 6 Position | CE | |
|
|
RPS-ICR2-UKPOWER SUPPLY, ICR2, 12V/1A, 6-PI |
0 | - |
|
数据表 |
SYS1561-Wxx (12W) | Bulk | Active | United Kingdom | Wall Mount (Class I) | 90 ~ 264 VAC | 12V | 1A | - | 12 W | - | Fixed Blade | - | ITE (Commercial) | BS 1363 | Level VI | 2.52" L x 1.77" W x 1.18" H (64.0mm x 45.0mm x 30.0mm) | 59" (1.50m) | 0°C ~ 40°C | Rectangular, 6 Position | BIS, BSMI, CB, CCC, CE, cULus, EAC, FCC, GS, IECEE, KC, PSE, RCM, SAA, S-MARK, UKCA | |
|
SDI12-5.9-UDC-P6AC/DC DESKTOP ADAPTER 5.9V 12W |
0 | - |
|
数据表 |
SDI12-UD (12W) | Box | Active | North America | Desktop (Class II) | 90 ~ 264 VAC | 5.9V | 2A | - | 12 W | 100mW (Max) | Cord | Positive Center | ITE (Commercial) | IEC 320-C8 | Level VI, CoC Tier 2 | 2.95" L x 1.89" W x 1.18" H (75.0mm x 48.0mm x 30.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | |
|
|
SDI12-12-UD2-P5AC/DC DESKTOP ADAPTER 12V 12W |
0 | - |
|
数据表 |
SDI12-UD (12W) | Box | Active | Europe | Desktop (Class II) | 90 ~ 264 VAC | 12V | 1A | - | 12 W | 100mW (Max) | Cord | Positive Center | ITE (Commercial) | IEC 320-C8 | Level VI, CoC Tier 2 | 2.95" L x 1.89" W x 1.18" H (75.0mm x 48.0mm x 30.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, CSA, EN, FCC, IEC, PSE, UL |
