交流直流桌面、墙式电源适配器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 特性 | 功率（瓦特） | 空载功耗 | 输入类型 | 极化 | 应用 | 输入连接器 | 效率 | 尺寸 / 尺寸 | 电线长度 | 工作温度 | 输出连接器 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GST40A12-P1IAC/DC DESKTOP ADAPTER 12V 40W |
0 | - |
|
数据表 |
GST40A (40W) | Box | Active | International | Desktop (Class I) | 90 ~ 264 VAC | 12V | 3.34A | - | 40 W | 75mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C14 | Level VI | 4.92" L x 1.97" W x 1.24" H (125.0mm x 50.0mm x 31.5mm) | 39.4" (1.00m) | -30°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM | |
|
|
GST40A12-P2MRAC/DC DESKTOP ADAPTER 12V 40W |
0 | - |
|
数据表 |
GST40A (40W) | Box | Active | International | Desktop (Class I) | 90 ~ 264 VAC | 12V | 3.34A | - | 40 W | 75mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C14 | Level VI | 4.92" L x 1.97" W x 1.24" H (125.0mm x 50.0mm x 31.5mm) | 39.4" (1.00m) | -30°C ~ 70°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM | |
|
|
GST40A12-NCAC/DC DESKTOP ADAPTER 12V 40W |
0 | - |
|
数据表 |
GST40A (40W) | Box | Active | International | Desktop (Class I) | 90 ~ 264 VAC | 12V | 3.34A | - | 40 W | 75mW (Max) | Cord (Sold Separately) | - | ITE (Commercial) | IEC 320-C14 | Level VI | 4.92" L x 1.97" W x 1.24" H (125.0mm x 50.0mm x 31.5mm) | 39.4" (1.00m) | -30°C ~ 70°C | - | BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM | |
|
|
GST40A24-P2LRAC/DC DESKTOP ADAPTER 24V 40W |
0 | - |
|
数据表 |
GST40A (40W) | Box | Active | International | Desktop (Class I) | 90 ~ 264 VAC | 24V | 1.67A | - | 40 W | 75mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C14 | Level VI | 4.92" L x 1.97" W x 1.24" H (125.0mm x 50.0mm x 31.5mm) | 70.9" (1.80m) | -30°C ~ 70°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM | |
|
|
GST40A24-P2JAC/DC DESKTOP ADAPTER 24V 40W |
0 | - |
|
数据表 |
GST40A (40W) | Box | Active | International | Desktop (Class I) | 90 ~ 264 VAC | 24V | 1.67A | - | 40 W | 75mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C14 | Level VI | 4.92" L x 1.97" W x 1.24" H (125.0mm x 50.0mm x 31.5mm) | 70.9" (1.80m) | -30°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM | |
|
|
GST40A12-P2LAC/DC DESKTOP ADAPTER 12V 40W |
0 | - |
|
数据表 |
GST40A (40W) | Box | Active | International | Desktop (Class I) | 90 ~ 264 VAC | 12V | 3.34A | - | 40 W | 75mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C14 | Level VI | 4.92" L x 1.97" W x 1.24" H (125.0mm x 50.0mm x 31.5mm) | 39.4" (1.00m) | -30°C ~ 70°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM | |
|
|
GST40A12-P2IRAC/DC DESKTOP ADAPTER 12V 40W |
0 | - |
|
数据表 |
GST40A (40W) | Box | Active | International | Desktop (Class I) | 90 ~ 264 VAC | 12V | 3.34A | - | 40 W | 75mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C14 | Level VI | 4.92" L x 1.97" W x 1.24" H (125.0mm x 50.0mm x 31.5mm) | 39.4" (1.00m) | -30°C ~ 70°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM | |
|
|
TE20A1803F01AC/DC DESKTOP ADAPTER 18V 20W |
0 | - |
|
数据表 |
TE20 (20W) | Bulk | Active | International | Desktop (Class I) | 90 ~ 264 VAC | 18V | 1.1A | - | 20 W | 100mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C14 | Level VI | 3.31" L x 1.85" W x 1.22" H (84.0mm x 47.0mm x 31.0mm) | 59" (1.50m) | -20°C ~ 70°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CE | |
|
|
TE20A1803N01AC/DC DESKTOP ADAPTER 18V 20W |
0 | - |
|
数据表 |
TE20 (20W) | Bulk | Active | International | Desktop (Class II) | 90 ~ 264 VAC | 18V | 1.1A | - | 20 W | 100mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C8 | Level VI | 3.31" L x 1.85" W x 1.22" H (84.0mm x 47.0mm x 31.0mm) | 59" (1.50m) | -20°C ~ 70°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CE | |
|
|
TE20A0502C01AC/DC WALL MOUNT ADAPTER 5V 15W |
0 | - |
|
数据表 |
TE20 (20W) | Bulk | Active | North America | Wall Mount (Class II) | 90 ~ 264 VAC | 5V | 3A | - | 15 W | 100mW (Max) | Multi-Blade (Single Blade Included) | Positive Center | ITE (Commercial) | NEMA 1-15P | Level VI | 3.31" L x 1.85" W x 1.50" H (84.0mm x 47.0mm x 38.0mm) | 59" (1.50m) | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CE | |
|
|
TE20A0703C01AC/DC WALL MNT ADAPTER 7.5V 15W |
0 | - |
|
数据表 |
TE20 (20W) | Bulk | Active | North America | Wall Mount (Class II) | 90 ~ 264 VAC | 7.5V | 2A | - | 15 W | 100mW (Max) | Multi-Blade (Single Blade Included) | Positive Center | ITE (Commercial) | NEMA 1-15P | Level VI | 3.31" L x 1.85" W x 1.50" H (84.0mm x 47.0mm x 38.0mm) | 59" (1.50m) | -20°C ~ 70°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CE | |
|
|
TE20A0703Q01AC/DC DESKTOP ADAPTER 7.5V 15W |
0 | - |
|
数据表 |
TE20 (20W) | Bulk | Active | International | Desktop (Class II) | 90 ~ 264 VAC | 7.5V | 2A | - | 15 W | 100mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C18 | Level VI | 3.31" L x 1.85" W x 1.22" H (84.0mm x 47.0mm x 31.0mm) | 59" (1.50m) | -20°C ~ 70°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CE | |
|
|
TE20A1202N01AC/DC DESKTOP ADAPTER 12V 18W |
0 | - |
|
数据表 |
TE20 (20W) | Bulk | Active | International | Desktop (Class II) | 90 ~ 264 VAC | 12V | 1.5A | - | 18 W | 100mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C8 | Level VI | 3.31" L x 1.85" W x 1.22" H (84.0mm x 47.0mm x 31.0mm) | 59" (1.50m) | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CE | |
|
|
TE20A1803C01AC/DC WALL MOUNT ADAPTER |
0 | - |
|
数据表 |
TE20 (20W) | Bulk | Active | North America | Wall Mount (Class II) | 90 ~ 264 VAC | - | - | - | - | 100mW (Max) | Multi-Blade (Single Blade Included) | Positive Center | ITE (Commercial) | NEMA 1-15P | Level VI | 3.31" L x 1.85" W x 1.50" H (84.0mm x 47.0mm x 38.0mm) | 59" (1.50m) | -20°C ~ 70°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CE | |
|
|
TE20A1803Q01AC/DC DESKTOP ADAPTER 18V 20W |
0 | - |
|
数据表 |
TE20 (20W) | Bulk | Active | International | Desktop (Class II) | 90 ~ 264 VAC | 18V | 1.1A | - | 20 W | 100mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C18 | Level VI | 3.31" L x 1.85" W x 1.22" H (84.0mm x 47.0mm x 31.0mm) | 59" (1.50m) | -20°C ~ 70°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CE | |
|
|
TE20A2402F01AC/DC DESKTOP ADAPTER 24V 20W |
0 | - |
|
数据表 |
TE20 (20W) | Bulk | Active | International | Desktop (Class I) | 90 ~ 264 VAC | 24V | 830mA | - | 20 W | 100mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C14 | Level VI | 3.31" L x 1.85" W x 1.22" H (84.0mm x 47.0mm x 31.0mm) | 59" (1.50m) | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CE | |
|

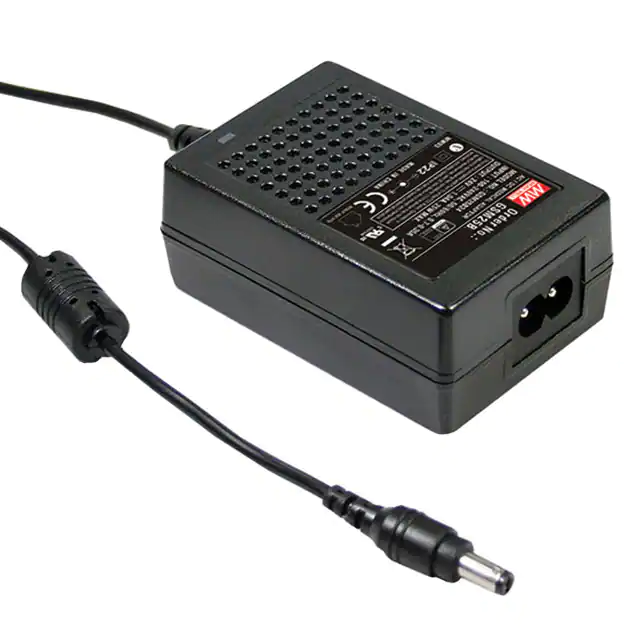

GSM25B07-P1JAC/DC DESKTOP ADAPTER 7.5V 22W |
0 | - |
|
数据表 |
GSM25B (25W) | Box | Active | International | Desktop (Class II) | 80 ~ 264 VAC | 7.5V | 2.93A | - | 22 W | 100mW (Max) | Cord (Sold Separately) | Positive Center | Medical | IEC 320-C8 | Level V | 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm) | 47.2" (1.20m) | -25°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | CB, CE, cRUus, TUV | |
|
GSM25E09-P1JAC/DC WALL MOUNT ADAPTER 9V 25W |
0 | - |
|
数据表 |
GSM25E (25W) | Box | Active | Europe | Wall Mount (Class II) | 80 ~ 264 VAC | 9V | 2.77A | - | 25 W | 100mW (Max) | Fixed Blade | Positive Center | Medical | CEE 7/16 | Level V | 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm) | 47.2" (1.20m) | -25°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | CB, CE, TUV | |
|
|
GSM25E18-P1JAC/DC WALL MOUNT ADAPTER 18V 25W |
0 | - |
|
数据表 |
GSM25E (25W) | Box | Active | Europe | Wall Mount (Class II) | 80 ~ 264 VAC | 18V | 1.38A | - | 25 W | 100mW (Max) | Fixed Blade | Positive Center | Medical | CEE 7/16 | Level VI | 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm) | 70.9" (1.80m) | -25°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | CB, CE, TUV | |
|
GSM25U48-P1JAC/DC WALL MOUNT ADAPTER 48V 25W |
0 | - |
|
数据表 |
GSM25U (25W) | Box | Active | North America | Wall Mount (Class II) | 80 ~ 264 VAC | 48V | 520mA | - | 25 W | 100mW (Max) | Fixed Blade | Positive Center | Medical | NEMA 1-15P | Level VI | 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm) | 70.9" (1.80m) | -25°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | CB, cRUus, TUV |
