交流直流桌面、墙式电源适配器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 特性 | 功率（瓦特） | 空载功耗 | 输入类型 | 极化 | 应用 | 输入连接器 | 效率 | 尺寸 / 尺寸 | 电线长度 | 工作温度 | 输出连接器 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
QFWB-20-9-US01AC/DC WALL MOUNT ADAPTER 9V 18W Qualtek |
48 | - |
|
数据表 |
QFWB-20 (20W) | Bulk | Active | North America | Wall Mount (Class II) | 100 ~ 240 VAC | 9V | 2A | - | 18 W | 100mW | Fixed Blade | - | ITE (Commercial) | NEMA 1-15P | Level VI | 2.32" L x 1.61" W x 1.04" H (59.0mm x 40.9mm x 26.5mm) | 59" (1.50m) | 0°C ~ 40°C | - | FCC |
|
QADA-50-15-1401AC/DC DESKTOP ADAPTER 15V 50W Qualtek |
36 | - |
|
数据表 |
QADA-50 (50W) | Bulk | Active | International | Desktop (Class I) | 100 ~ 240 VAC | 15V | 3.34A | - | 50 W | 210mW (Max) | Cord (Sold Separately) | Positive Center | - | IEC 320-C14 | Level VI | 4.53" L x 2.09" W x 1.50" H (115.0mm x 53.0mm x 38.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | BSMI, CB, CCC, CE, cULus, FCC, GS, PSE |
|
QADA-90-24-1442AC/DC DESKTOP ADAPTER 24V 90W Qualtek |
97 | - |
|
数据表 |
QADA-90 (90W) | Bulk | Active | International | Desktop (Class I) | 100 ~ 240 VAC | 24V | 3.75A | - | 90 W | 210mW (Max) | Cord (Sold Separately) | - | - | IEC 320-C14 | Level VI | 5.94" L x 2.52" W x 1.42" H (151.0mm x 64.0mm x 36.0mm) | 59" (1.50m) | 0°C ~ 40°C | Power DIN, 4 Pin | BSMI, CB, CE, cULus, FCC, GS, PSE |
|

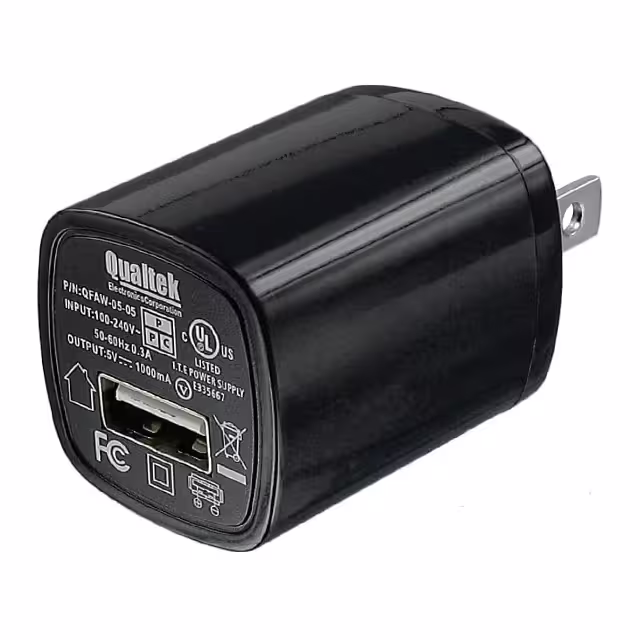

QFAW-05-05AC/DC WALL MOUNT ADAPTER 5V 5W Qualtek |
22 | - |
|
数据表 |
QFAW-05 (5W) | Bulk | Obsolete | North America | Wall Mount (Class II) | 90 ~ 264 VAC | 5V | 1A | - | 5 W | 100mW (Max) | Fixed Blade | - | ITE (Commercial) | NEMA 1-15P | Level VI | 1.18" L x 1.18" W x 1.52" H (30.0mm x 30.0mm x 38.6mm) | - | -20°C ~ 40°C | USB A Receptacle | cULus, FCC |
|
QFWB-18-12-US01AC/DC WALL MOUNT ADAPTER 12V 18W Qualtek |
0 | - |
|
数据表 |
QFWB-18 (18W) | Bulk | Obsolete | North America | Wall Mount (Class II) | 100 ~ 240 VAC | 12V | 1.5A | - | 18 W | 100mW (Max) | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | Level VI | 2.81" L x 1.70" W x 1.13" H (71.3mm x 43.3mm x 28.8mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | cULus |
|
|
QFWB-18-5-US01AC/DC WALL MOUNT ADAPTER 5V 11W Qualtek |
0 | - |
|
数据表 |
QFWB-18 (18W) | Bulk | Obsolete | North America | Wall Mount (Class II) | 100 ~ 240 VAC | 5V | 2.1A | - | 11 W | 100mW (Max) | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | Level VI | 2.81" L x 1.70" W x 1.13" H (71.3mm x 43.3mm x 28.8mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | cULus |
|
|
QFWB-18-9-US01AC/DC WALL MOUNT ADAPTER 9V 18W Qualtek |
0 | - |
|
数据表 |
QFWB-18 (18W) | Bulk | Obsolete | North America | Wall Mount (Class II) | 100 ~ 240 VAC | 9V | 2A | - | 18 W | 100mW (Max) | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | Level VI | 2.81" L x 1.70" W x 1.13" H (71.3mm x 43.3mm x 28.8mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | cULus |
