| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率(瓦特) | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM42-12AAC/DC CONVERTER 12V 42W FSP Technology Inc. |
14 | - |
|
数据表 |
PM42 (42W) | Box | Active | Open Frame | 1 | 12V | - | - | 42W | - | - | 90 ~ 264 VAC | - | 3.5 A | - | - | ITE (Commercial), Medical | - | - | - | - | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.18" H (101.6mm x 50.8mm x 30.0mm) |
|
PM101-12AAC/DC CONVERTER 12V 80W FSP Technology Inc. |
64 | - |
|
数据表 |
PM101 (101W) | Box | Active | Open Frame | 1 | 12V | - | - | 80W | - | - | 80 ~ 264 VAC | - | 6.67 A | - | - | ITE (Commercial), Medical | - | - | - | - | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.29" H (101.6mm x 50.8mm x 32.8mm) |
|
PM101-14AAC/DC CONVERTER 24V 100W FSP Technology Inc. |
25 | - |
|
数据表 |
PM101 (101W) | Box | Active | Open Frame | 1 | 24V | - | - | 100W | - | - | 80 ~ 264 VAC | - | 4.174 A | - | - | ITE (Commercial), Medical | - | - | - | - | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.29" H (101.6mm x 50.8mm x 32.8mm) |
|
PM400-14BAC/DC CONVERTER 24V 300W FSP Technology Inc. |
10 | - |
|
数据表 |
PM400 (400W) | Box | Active | Open Frame | 1 | 24V | - | - | 300W (400W Forced Air) | - | - | 90 ~ 264 VAC | - | 16.67 A | - | - | ITE (Commercial), Medical | - | - | - | - | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 7.00" L x 4.00" W x 1.56" H (177.8mm x 101.6mm x 39.6mm) |
|
PM500-14BAC/DC CONVERTER 24V 400W FSP Technology Inc. |
24 | - |
|
数据表 |
PM500 (500W) | Box | Active | Open Frame | 1 | 24V | - | - | 400W (500W Forced Air) | - | - | 90 ~ 264 VAC | - | 20.84 A | - | - | ITE (Commercial), Medical | - | - | - | - | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 7.00" L x 4.00" W x 1.56" H (177.8mm x 101.6mm x 39.6mm) |
|
PM500-12BAC/DC CONVERTER 12V 350W FSP Technology Inc. |
24 | - |
|
数据表 |
PM500 (500W) | Box | Active | Open Frame | 1 | 12V | - | - | 350W (450W Forced Air) | - | - | 90 ~ 264 VAC | - | 37.5 A | - | - | ITE (Commercial), Medical | - | - | - | - | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 7.00" L x 4.00" W x 1.56" H (177.8mm x 101.6mm x 39.6mm) |
|

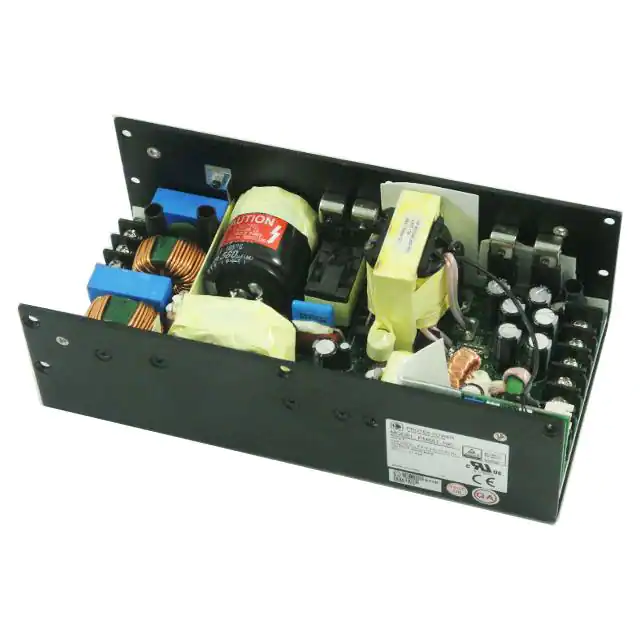

PM651-12BAC/DC CONVERTER 12V 600W FSP Technology Inc. |
16 | - |
|
数据表 |
PM651 (651W) | Box | Active | Open Frame | 1 | 12V | - | - | 600W | - | - | 90 ~ 264 VAC | - | 50 A | - | - | ITE (Commercial), Medical | - | - | - | - | -10°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Standby Output, Universal Input | Chassis Mount | 8.00" L x 4.00" W x 2.58" H (203.2mm x 101.6mm x 65.5mm) |
|
PM651-14BAC/DC CONVERTER 24V 650W FSP Technology Inc. |
12 | - |
|
数据表 |
PM651 (651W) | Box | Active | Open Frame | 1 | 24V | - | - | 650W | - | - | 90 ~ 264 VAC | - | 27.09 A | - | - | ITE (Commercial), Medical | - | - | - | - | -10°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Standby Output, Universal Input | Chassis Mount | 8.00" L x 4.00" W x 2.58" H (203.2mm x 101.6mm x 65.5mm) |
|
PM500F-12BAC/DC CONVERTER 12V 250W FSP Technology Inc. |
24 | - |
|
数据表 |
PM500F (500W) | Box | Active | Open Frame | 1 | 12V | - | - | 250W (450W Forced Air) | - | - | 80 ~ 264 VAC | - | 37.5 A | - | - | Medical | - | - | - | - | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 4.21" W x 1.56" H (101.6mm x 106.9mm x 39.6mm) |
|
PM500F-14BAC/DC CONVERTER 24V 250W FSP Technology Inc. |
17 | - |
|
数据表 |
PM500F (500W) | Box | Active | Open Frame | 1 | 24V | - | - | 250W (500W Forced Air) | - | - | 80 ~ 264 VAC | - | 20.84 A | - | - | Medical | - | - | - | - | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 4.21" W x 1.56" H (101.6mm x 106.9mm x 39.6mm) |
