交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率（瓦特） | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AMEC40-12SMAZAC/DC CONVERTER 12V 40W aimtec |
12 | - |
|
数据表 |
AMEC40-MAZ (40W) | Bulk | Active | Enclosed | 1 | 12V | - | - | 40W | - | - | 90 ~ 264 VAC, 130 ~ 370 VDC | - | 3.33 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Universal Input | Chassis Mount | 4.90" L x 2.56" W x 1.38" H (124.5mm x 65.0mm x 35.1mm) |
|
AMEOF225-48SHAMJZ-FAC/DC CONVERTER 48V 140W aimtec |
3 | - |
|
数据表 |
AMEOF225-HAMJZ (140W ) | Box | Obsolete | Enclosed | 1 | 48V | - | - | 140W (226W Forced Air) | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 4.7 A | - | - | Household Appliances, ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 4.07" L x 2.44" W x 1.46" H (103.4mm x 62.0mm x 37.1mm) |
|
|
AMEOF225-24SHAMJZ-FAC/DC CONVERTER 24V 140W aimtec |
3 | - |
|
数据表 |
AMEOF225-HAMJZ (140W ) | Box | Obsolete | Enclosed | 1 | 24V | - | - | 140W (226W Forced Air) | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 9.4 A | - | - | Household Appliances, ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 4.07" L x 2.44" W x 1.46" H (103.4mm x 62.0mm x 37.1mm) |
|
|
AMEOF225-36SHAMJZ-FAC/DC CONVERTER 36V 140W aimtec |
3 | - |
|
数据表 |
AMEOF225-HAMJZ (140W ) | Box | Obsolete | Enclosed | 1 | 36V | - | - | 140W (225W Forced Air) | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 6.25 A | - | - | Household Appliances, ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 4.07" L x 2.44" W x 1.46" H (103.4mm x 62.0mm x 37.1mm) |
|
|
AMEOF225-27SHAMJZ-FAC/DC CONVERTER 27V 130W aimtec |
3 | - |
|
数据表 |
AMEOF225-HAMJZ (130W ) | Box | Obsolete | Enclosed | 1 | 27V | - | - | 130W (225W Forced Air) | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 8.35 A | - | - | Household Appliances, ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 4.07" L x 2.44" W x 1.46" H (103.4mm x 62.0mm x 37.1mm) |
|
|

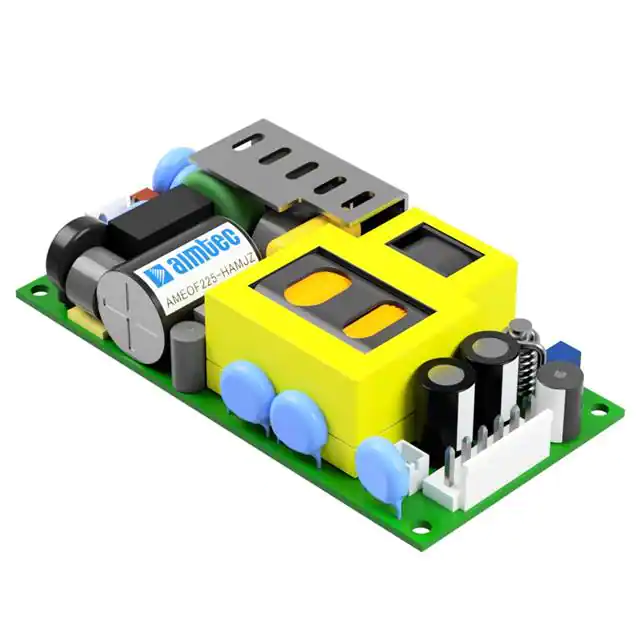

AMEOF225-12SHAMJZ-FAC/DC CONVERTER 12V 140W aimtec |
3 | - |
|
数据表 |
AMEOF225-HAMJZ (140W ) | Box | Obsolete | Enclosed | 1 | 12V | - | - | 140W (225W Forced Air) | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 18.75 A | - | - | Household Appliances, ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 4.07" L x 2.44" W x 1.46" H (103.4mm x 62.0mm x 37.1mm) |
|
|
AMEOF225-15SHAMJZ-FAC/DC CONVERTER 15V 140W aimtec |
3 | - |
|
数据表 |
AMEOF225-HAMJZ (140W ) | Box | Obsolete | Enclosed | 1 | 15V | - | - | 140W (225W Forced Air) | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 15 A | - | - | Household Appliances, ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 4.07" L x 2.44" W x 1.46" H (103.4mm x 62.0mm x 37.1mm) |
|
AMESP320-48S277NZAC/DC CONVERTER 48V 322W aimtec |
6 | - |
|
数据表 |
AMESP320-NZ (322W) | Box | Obsolete | Enclosed | 1 | 48V | - | - | 322W | - | - | 85 ~ 264 VAC, 120 ~ 430 VDC | - | 6.7 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 8.46" L x 4.53" W x 1.18" H (214.9mm x 115.1mm x 30.0mm) |
|
|
AMESP320-24S277NZAC/DC CONVERTER 24V 322W aimtec |
2 | - |
|
数据表 |
AMESP320-NZ (322W) | Box | Obsolete | Enclosed | 1 | 24V | - | - | 322W | - | - | 85 ~ 264 VAC, 120 ~ 430 VDC | - | 13.4 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 8.46" L x 4.53" W x 1.18" H (214.9mm x 115.1mm x 30.0mm) |
|
|
AMEOF225-36SHAMJZ-BAC/DC CONVERTER 36V 140W aimtec |
2 | - |
|
数据表 |
AMEOF225-HAMJZ (140W ) | Box | Active | Open Frame | 1 | 36V | - | - | 140W (225W Forced Air) | - | - | 85 ~ 264 VAC, 120 ~ 373 VDC | - | 6.25 A | - | - | Household Appliances, ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.00" H (101.6mm x 50.8mm x 25.4mm) |
