交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率（瓦特） | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

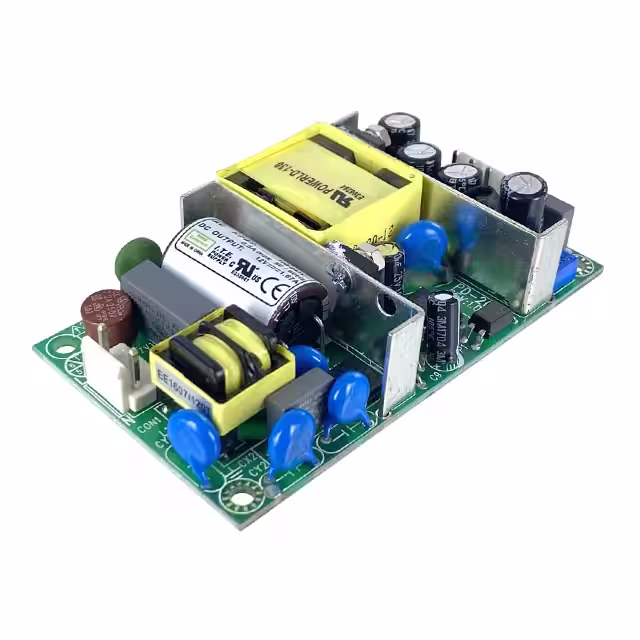

QPS-20-24AC/DC CONVERTER 24V 20W Qualtek |
85 | - |
|
数据表 |
QPS-20 (20W) | Box | Obsolete | Open Frame | 1 | 24V | - | - | 20W | - | - | 85 ~ 264 VAC | - | 800 mA | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.50" L x 2.01" W x 0.79" H (89.0mm x 51.0mm x 20.0mm) |
|
QPD-150-12AC/DC CONVERTER 12V 150W Qualtek |
15 | - |
|
数据表 |
QPD-150 (150W) | Box | Obsolete | Enclosed | 1 | 12V | - | - | 150W | - | - | 88 ~ 132 VAC, 176 ~ 264 VAC | - | 12.5 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.83" L x 3.86" W x 1.50" H (199.0mm x 98.0mm x 38.0mm) |
|

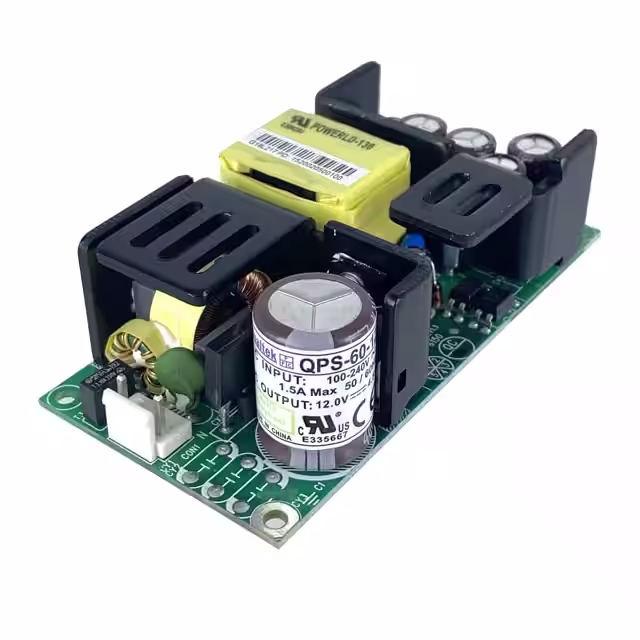

QPS-60-24AC/DC CONVERTER 24V 60W Qualtek |
1 | - |
|
数据表 |
QPS-60 (60W) | Box | Active | Open Frame | 1 | 24V | - | - | 60W | - | - | 90 ~ 264 VAC | - | 2.5 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.10" H (101.6mm x 50.8mm x 28.0mm) |
|
|
QPS-20-5AC/DC CONVERTER 5V 20W Qualtek |
0 | - |
|
数据表 |
QPS-20 (20W) | Box | Obsolete | Open Frame | 1 | 5V | - | - | 20W | - | - | 85 ~ 264 VAC | - | 4 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.50" L x 2.01" W x 0.79" H (89.0mm x 51.0mm x 20.0mm) |
|
|
QPS-20-12AC/DC CONVERTER 12V 20W Qualtek |
0 | - |
|
数据表 |
QPS-20 (20W) | Box | Obsolete | Open Frame | 1 | 12V | - | - | 20W | - | - | 85 ~ 264 VAC | - | 1.67 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.50" L x 2.01" W x 0.79" H (89.0mm x 51.0mm x 20.0mm) |
|
|
QPS-20-3.3AC/DC CONVERTER 3.3V 20W Qualtek |
0 | - |
|
数据表 |
QPS-20 (20W) | Bulk | Obsolete | Open Frame | 1 | 3.3V | - | - | 20W | - | - | 90 ~ 264 VAC | - | 4 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.50" L x 2.01" W x 0.79" H (89.0mm x 51.0mm x 20.0mm) |
|

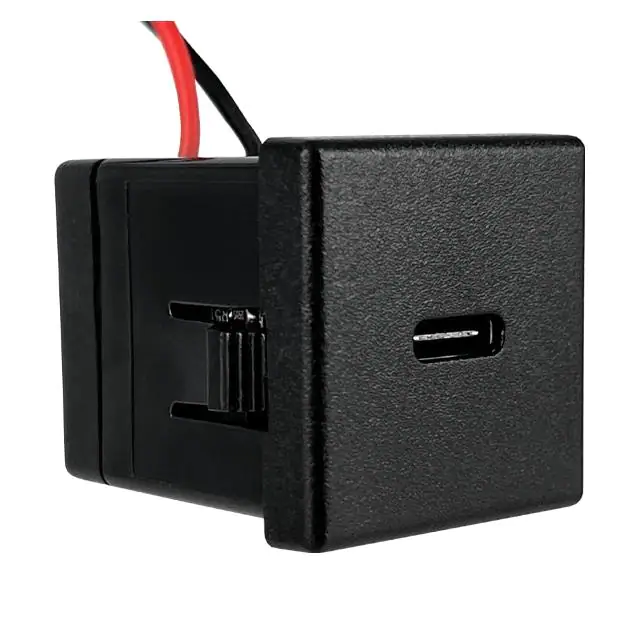

QKRC-10-05AC/DC CONVERTER 5V 10W Qualtek |
1,853 | - |
|
数据表 |
QKRC-10 (10W) | Bulk | Active | Enclosed | 1 | 5V | - | - | 10W | - | - | 90 ~ 132 VAC | - | 2 A | - | - | ITE (Commercial) | - | - | - | - | 0°C ~ 40°C | - | Chassis Mount | 1.06" L x 1.06" W x 0.98" H (27.0mm x 27.0mm x 25.0mm) |
|
QPS-35-24AC/DC CONVERTER 24V 36W Qualtek |
0 | - |
|
数据表 |
QPS-35 (35W) | Bulk | Active | Open Frame | 1 | 24V | - | - | 36W | - | - | 90 ~ 264 VAC | - | 1.5 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 65°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.01" W x 0.99" H (101.6mm x 51.0mm x 25.1mm) |
|

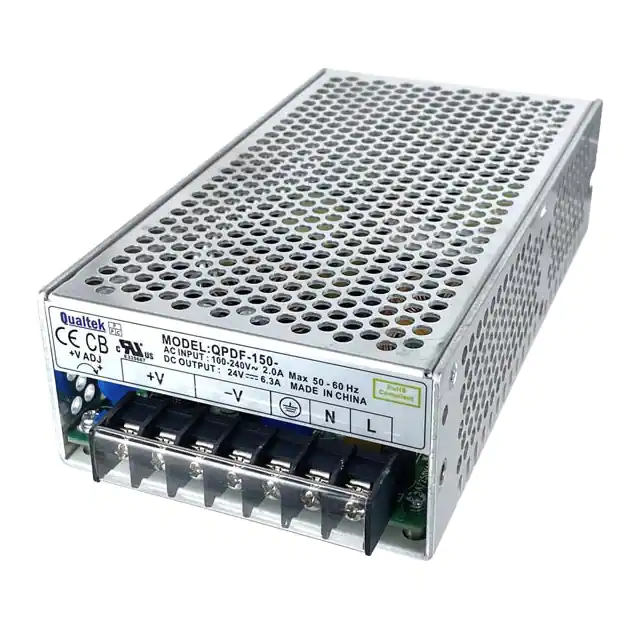

QPDF-150-24AC/DC CONVERTER 24V 150W Qualtek |
337 | - |
|
数据表 |
QPDF-150 (150W) | Box | Active | Enclosed | 1 | 24V | - | - | 150W | - | - | 85 ~ 264 VAC | - | 6.3 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 7.64" L x 3.90" W x 1.97" H (194.0mm x 99.0mm x 50.0mm) |
|
|
QPD-15-5AC/DC CONVERTER 5V 15W Qualtek |
0 | - |
|
数据表 |
QPD-15 (15W) | Box | Active | Enclosed | 1 | 5V | - | - | 15W | - | - | 88 ~ 264 VAC | - | 3 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.11" L x 2.01" W x 1.10" H (79.0mm x 51.0mm x 28.0mm) |
