干簧继电器

制造商	系列	包装	产品状态	安装类型	线圈电压	触点额定值（电流）	切换电压	线圈电流	触点材料	线圈类型	特性	触点形式	端接样式	密封等级	工作温度	必须动作电压	释放时间	必须释放电压	动作时间
Altech Corporation Archimedes Controls Bright Toward Industrial Celduc Inc. Computer Components Inc Comus International Coto Technology Littelfuse Inc. NI Sensata Technologies Standex-Meder Electronics TE Connectivity Potter & Brumfield Relays US Digital	* - 1240 2 200 2200 2270 2300 2362 2370 2600 2900 2970 30 3350 3500 3563 3570 3572 3600 400 5500 7000 8000 8200 8500 8L 9000 9000, Spartan 9006 9007, Spartan 9011 9012 9091 9092 9094 9104 9117 9200 9300 9400 9900 9913 B41 BE BF BFH BFM BFM-CW BFS BH BT BU CGSM CRR D D-HR D1 D200 DA DB DIL DIP DR DSS4 DSS7 H HE HE3300 HE3600 HE700 HG HI HM JWD JWS KT LI LP MH MRE MRX MS MSIP MSS MSS2 MSS4 MVS2 NP OMR, OEG PRMA RM S S1 S2 S3 S4 S8 S8-HR SHV SIL SIL HV SIP SUL UMS V23100-V4, AXICOM V23100-V6, AXICOM VN-2A VN-4A XSIP XXHV	- Bag Box Bulk Tape & Reel (TR) Tray Tube	Active Discontinued at InFortune Not For New Designs Obsolete	- Chassis Mount Surface Mount Through Hole	- 12VDC 15VDC 24VDC 3.3VDC 35VDC 3VDC 5VDC 6VDC	- 1 A 100 mA 2 A 200 mA 240 mA 250 mA 250 mV 3 A 300 mA 350 mA 400 mA 500 mA 700 mA 750 mA	- 10000VAC, 10000VDC - Max 1000VAC, 1000VDC - Max 1000VDC - Max 100VAC, 100VDC - Max 100VDC - Max 120VAC, 170VDC - Max 120VAC, 60VDC - Max 120VDC - Max 125VAC, 125VDC - Max 140VAC, 200VDC - Max 1500VDC - Max 150VAC, 150VDC - Max 150VDC - Max 170VAC, 170VDC - Max 170VDC - Max 175VAC, 175VDC - Max 175VDC - Max 180VAC, 180VDC - Max 2.5V 200VAC, 200VDC - Max 200VDC - Max 20VAC, 20VDC - Max 240VDC - Max 24VDC - Nom 2500VAC, 2500VDC - Max 250VAC - Max 28VAC, 28VDC - Max 28VDC - Max 300VAC, 300VDC - Max 300VAC, 350VDC - Max 300VDC - Max 30VAC, 30VDC - Max 3500VAC, 3500VDC - Max 350VDC - Max 5000VAC, 5000VDC - Max 5000VDC - Max 500VAC, 500VDC - Max 7000VAC, 7000VDC - Max 7500VAC, 7500VDC - Max 7500VDC - Max	- 1.2 mA 10 mA 10.4 mA 10.9 mA 100 mA 11 mA 11.1 mA 11.2 mA 11.4 mA 11.5 mA 12 mA 12.5 mA 120 mA 125 mA 126 mA 126.3 mA 13 mA 13.3 mA 13.4 mA 13.5 mA 13.7 mA 131.6 mA 132 mA 14 mA 14.1 mA 14.3 mA 14.5 mA 15 mA 15.4 mA 15.5 mA 16 mA 16.7 mA 167 mA 17.1 mA 17.5 mA 17.8 mA 17.9 mA 178.6 mA 179 mA 18 mA 18.5 mA 18.8 mA 19.2 mA 19.3 mA 2.4 mA 20 mA 20.8 mA 21.7 mA 21.8 mA 22 mA 22.7 mA 22.8 mA 23.1 mA 24 mA 24.5 mA 240 mA 25 mA 25.9 mA 26 mA 26.7 mA 27 mA 27.8 mA 27.9 mA 28.6 mA 30 mA 30.7 mA 30.8 mA 31 mA 31.3 mA 312.5 mA 313 mA 33.3 mA 33.4 mA 34.3 mA 35.2 mA 35.3 mA 35.7 mA 35.8 mA 4 mA 4.3 mA 40 mA 41.7 mA 42.7 mA 45.5 mA 46.2 mA 47.1 mA 47.6 mA 48 mA 5 mA 5.6 mA 5.7 mA 50 mA 51.6 mA 52.2 mA 55.6 mA 6 mA 6.2 mA 6.3 mA 6.4 mA 6.5 mA 6.7 mA 6.9 mA 60 mA 62 mA 62.5 mA 63 mA 66.7 mA 67 mA 68.6 mA 69 mA 7.3 mA 7.5 mA 7.8 mA 71.4 mA 77 mA 8 mA 8.3 mA 80 mA 83.3 mA 9 mA 9.1 mA 9.3 mA 9.8 mA 90.9 mA 91 mA	- Rhodium (Rh) Rhodium (Rh), Ruthenium (Ru) Ruthenium (Ru) Tungsten (W)	- Latching, Dual Coil Non Latching	- Coaxial Shield Diode Diode, Electrostatic Shield Diode, EMI Shielded Diode, Magnetic Shield Electrostatic Shield EMI Shielded Magnetic Shield	- 3PDT (3 Form C) 3PST-NO (3 Form A) 4PST-NO (4 Form A) 6PST-NO (6 Form A) 8PST-NO (8 Form A) DPDT (2 Form C) DPST-NC (2 Form B) DPST-NO (2 Form A) DPST-NO/NC (1 Form A, 1 Form B) SPDT (1 Form C) SPDT (1 Form D) SPST-NC (1 Form B) SPST-NO (1 Form A) SPST-NO (1 Form A) x 2 SPST-NO (1 Form A) x 4	- Axial BGA Gull Wing J Lead PC Pin PC Pin, Solder Turret PC Pin, Wire Leads Quick Connect - 0.250" (6.3mm) SMD (SMT) Tab Solder Turret Wire Leads	- Sealed - Fully Sealed - Hermetically	- -20°C ~ 125°C -20°C ~ 55°C -20°C ~ 65°C -20°C ~ 70°C -20°C ~ 80°C -20°C ~ 85°C -25°C ~ 70°C -25°C ~ 85°C -30°C ~ 70°C -35°C ~ 85°C -38°C ~ 75°C -38°C ~ 85°C -40°C ~ 100°C -40°C ~ 105°C -40°C ~ 125°C -40°C ~ 65°C -40°C ~ 70°C -40°C ~ 80°C -40°C ~ 85°C -55°C ~ 85°C	- 10.5 VDC 10.8 VDC 11 VDC 14 VDC 16 VDC 16.4 VDC 16.8 VDC 17.5 VDC 17.6 VDC 18 VDC 19 VDC 19.2 VDC 2 VDC 2.1 VDC 2.25 VDC 2.3 VDC 2.5 VDC 2.9 VDC 20 VDC 3 VDC 3.5 VDC 3.6 VDC 3.7 VDC 3.75 VDC 3.8 VDC 4 VDC 4.2 VDC 4.5 VDC 5 VDC 6.7 VDC 7 VDC 7.1 VDC 8 VDC 8.4 VDC 8.5 VDC 8.6 VDC 8.8 VDC 9 VDC 9.6 VDC	- 0.05 ms 0.07 ms 0.1 ms 0.15 ms 0.2 ms 0.25 ms 0.3 ms 0.35 ms 0.4 ms 0.5 ms 0.7 ms 1 ms 1.25 ms 1.5 ms 1.6 ms 100 µs 2 ms 2.5 ms 20 µs 200 µs 3 ms 300 µs 400 µs 50 µs 600 µs	- 0.28 VDC 0.4 VDC 0.45 VDC 0.5 VDC 0.52 VDC 0.6 VDC 0.65 VDC 0.7 VDC 0.75 VDC 0.8 VDC 1 VDC 1.2 VDC 1.25 VDC 1.3 VDC 1.4 VDC 1.5 VDC 1.8 VDC 2 VDC 2.2 VDC 2.25 VDC 2.4 VDC 2.5 VDC 2.9 VDC 3 VDC 3.5 VDC 3.6 VDC 4 VDC	- 0.1 ms 0.2 ms 0.25 ms 0.3 ms 0.35 ms 0.4 ms 0.5 ms 0.55 ms 0.6 ms 0.7 ms 0.75 ms 0.8 ms 1 ms 1.1 ms 1.2 ms 1.25 ms 1.5 ms 1.75 ms 2 ms 2.5 ms 200 µs 3 ms 3.2 ms 300 µs 4 ms 400 µs 6 ms 650 µs 700 µs 750 µs

全部重置

全部应用

结果

厂商料号	库存情况	价格	数量	数据表	系列	包装	产品状态	安装类型	线圈电压	触点额定值（电流）	切换电压	线圈电流	触点材料	线圈类型	特性	触点形式	端接样式	密封等级	工作温度	必须动作电压	释放时间	必须释放电压	动作时间
DAT200-05 RELAY REED SPST-NO 3A 5V Sensata Technologies, Inc.	3,130	-	询价单	数据表	D200	Bulk	Active	Through Hole	5VDC	3 A	2500VAC, 2500VDC - Max	179 mA	Tungsten (W)	Non Latching	-	SPST-NO (1 Form A)	PC Pin	-	-20°C ~ 70°C	3.75 VDC	1 ms	0.5 VDC	6 ms
DAT71210-HR RELAY REED SPST-NO 2A 12V Sensata Technologies, Inc.	3,831	-	询价单	数据表	D-HR	Tray	Active	Through Hole	12VDC	2 A	7000VAC, 7000VDC - Max	80 mA	Tungsten (W)	Non Latching	-	SPST-NO (1 Form A)	PC Pin	-	-20°C ~ 70°C	9 VDC	2 ms	1.25 VDC	3 ms
DBR71210 RELAY REED SPST-NC 3A 12V Sensata Technologies, Inc.	130	-	询价单	数据表	DB	Tray	Active	Through Hole	12VDC	3 A	1000VAC, 1000VDC - Max	50 mA	Rhodium (Rh)	Non Latching	-	SPST-NC (1 Form B)	PC Pin	-	-20°C ~ 70°C	9 VDC	3 ms	1.25 VDC	2 ms
DBR72410 RELAY REED SPST-NC 3A 24V Sensata Technologies, Inc.	4,468	-	询价单	数据表	DB	Tray	Active	Through Hole	24VDC	3 A	1000VAC, 1000VDC - Max	25.9 mA	Rhodium (Rh)	Non Latching	-	SPST-NC (1 Form B)	PC Pin	-	-20°C ~ 70°C	20 VDC	3 ms	4 VDC	2 ms
3350-4275-126 RELAY REED HV SPST-NC 200W 3A 12 Computer Components Inc	4,029	-	询价单	数据表	3350	Bulk	Active	Through Hole	12VDC	3 A	3500VAC, 3500VDC - Max	68.6 mA	-	Non Latching	-	SPST-NC (1 Form B)	PC Pin	-	-20°C ~ 85°C	9 VDC	3 ms	1 VDC	3 ms
DAR72410S RELAY REED SPST-NO 3A 24V Sensata Technologies, Inc.	3,765	-	询价单	数据表	DA	Tray	Active	Chassis Mount	24VDC	3 A	1000VAC, 1000VDC - Max	30.7 mA	Rhodium (Rh)	Non Latching	-	SPST-NO (1 Form A)	Quick Connect - 0.250" (6.3mm)	-	-20°C ~ 70°C	20 VDC	2 ms	4 VDC	3 ms
DBT72475PU RELAY REED SPST-NC 7.5KV 24V Sensata Technologies, Inc.	3,436	-	询价单	数据表	DB	Bulk	Active	Chassis Mount	24VDC	2 A	5000VAC, 5000VDC - Max	25.9 mA	Tungsten (W)	Non Latching	-	SPST-NC (1 Form B)	Solder Turret	-	-20°C ~ 70°C	20 VDC	3 ms	4 VDC	2 ms
DBT72410P RELAY REED SPST-NC 2A 24V Sensata Technologies, Inc.	472	-	询价单	数据表	DB	Bulk	Active	Chassis Mount	24VDC	2 A	7000VAC, 7000VDC - Max	25.9 mA	Tungsten (W)	Non Latching	-	SPST-NC (1 Form B)	Solder Turret	-	-20°C ~ 70°C	20 VDC	3 ms	4 VDC	2 ms
DAT72415-HR RELAY REED SPST-NO 2A 24V Sensata Technologies, Inc.	1,618	-	询价单	数据表	D-HR	Tray	Active	Through Hole	24VDC	2 A	10000VAC, 10000VDC - Max	68.6 mA	Tungsten (W)	Non Latching	-	SPST-NO (1 Form A)	PC Pin	-	-20°C ~ 70°C	20 VDC	2 ms	4 VDC	3 ms
H24-1A83 RELAY REED SPST 3A 24V Standex-Meder Electronics	1,211	-	询价单	数据表	H	Bulk	Active	Chassis Mount	24VDC	3 A	7500VAC, 7500VDC - Max	34.3 mA	-	Non Latching	-	SPST-NO (1 Form A)	Wire Leads	-	-20°C ~ 70°C	18 VDC	1.5 ms	2 VDC	3.2 ms
3570-1210-121 RELAY REED DIP SPST .5A 12V Comus International	2,457	-	询价单	数据表	3570	Tube	Active	Through Hole	12VDC	500 mA	150VDC - Max	12 mA	-	Non Latching	-	SPST-NO (1 Form A)	PC Pin	-	-20°C ~ 85°C	9 VDC	0.5 ms	1 VDC	0.5 ms
8L01-12-001 RELAY REED SPST 500MA 12V Coto Technology	9,924	-	询价单	数据表	8L	Tube	Active	Through Hole	12VDC	500 mA	200VAC, 200VDC - Max	24 mA	-	Non Latching	-	SPST-NO (1 Form A)	PC Pin	-	-20°C ~ 85°C	9.6 VDC	0.5 ms	1 VDC	0.5 ms
HE751A0500 RELAY REED SPST 500MA 5V Littelfuse Inc.	5,927	-	询价单	数据表	HE700	Tube	Active	Through Hole	5VDC	500 mA	300VDC - Max	10 mA	-	Non Latching	-	SPST-NO (1 Form A)	PC Pin	-	-20°C ~ 85°C	3.75 VDC	1 ms	0.5 VDC	1 ms

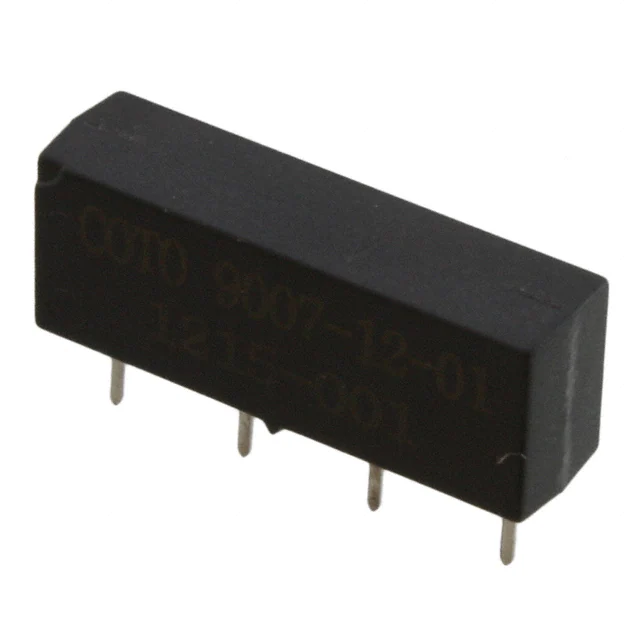

9007-12-01 RELAY REED SPST 500MA 12V Coto Technology	3,362	-	询价单	数据表	9007, Spartan	Tube	Active	Through Hole	12VDC	500 mA	200VAC, 200VDC - Max	12 mA	-	Non Latching	Diode	SPST-NO (1 Form A)	PC Pin	-	-20°C ~ 85°C	9 VDC	0.2 ms	1 VDC	0.5 ms
HE751A2400 RELAY REED SPST 500MA 24V Littelfuse Inc.	3,266	-	询价单	数据表	HE700	Tube	Active	Through Hole	24VDC	500 mA	300VDC - Max	11.1 mA	-	Non Latching	-	SPST-NO (1 Form A)	PC Pin	-	-20°C ~ 85°C	16 VDC	1 ms	2 VDC	1 ms
9007-24-01 RELAY REED SPST 500MA 24V Coto Technology	1,281	-	询价单	数据表	9007, Spartan	Tube	Active	Through Hole	24VDC	500 mA	200VAC, 200VDC - Max	12 mA	-	Non Latching	Diode	SPST-NO (1 Form A)	PC Pin	-	-20°C ~ 85°C	18 VDC	0.2 ms	2 VDC	0.5 ms
3570-1333-053 RELAY REED SIP SPST .5A 5V W/DIO Comus International	878	-	询价单	数据表	3570	Tube	Active	Through Hole	5VDC	500 mA	200VDC - Max	10 mA	-	Non Latching	Diode	SPST-NO (1 Form A)	PC Pin	-	-40°C ~ 85°C	3.75 VDC	0.1 ms	0.8 VDC	0.35 ms
HE3621A1250 RELAY REED SPST 500MA 12V Littelfuse Inc.	7,551	-	询价单	数据表	HE3600	Tube	Active	Through Hole	12VDC	500 mA	200VDC - Max	12 mA	-	Non Latching	Diode, EMI Shielded	SPST-NO (1 Form A)	PC Pin	-	-40°C ~ 85°C	8 VDC	1 ms	1 VDC	1 ms
3572-1220-121 RELAY REED DIP DPST .5A 12V Comus International	1,040	-	询价单	数据表	3572	Tube	Active	Through Hole	12VDC	500 mA	150VDC - Max	24 mA	-	Non Latching	-	DPST-NO (2 Form A)	PC Pin	-	-20°C ~ 85°C	9 VDC	0.5 ms	1 VDC	0.5 ms
3572-1220-054 RELAY REED DIP DPST .5A 5V W/DIO Comus International	414	-	询价单	数据表	3572	Tube	Active	Through Hole	5VDC	500 mA	150VDC - Max	35.7 mA	-	Non Latching	Diode, Electrostatic Shield	DPST-NO (2 Form A)	PC Pin	-	-20°C ~ 85°C	3.75 VDC	0.5 ms	0.6 VDC	0.5 ms

共 1567 条记录«上一页 1... 8 9 10 111213 14 15...79 下一页»
