IGBT 模块
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | IGBT 类型 | 配置 | 电流 - 集电极 (Ic)（最大值） | 功率 - 最大值 | 导通电压 (Vce(on)）（最大值）@ Vge, Ic | 电流 - 集电极截止（最大值） | 输入电容 (Cies) @ Vce | 电压 - 集电极发射极击穿（最大值） | 输入 | NTC 热敏电阻 | 工作温度 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APTGLQ80HR120CT3GIGBT MODULE 1200V 150A 500W SP3 Microchip Technology |
3,165 | - |
|
数据表 |
- | SP3 | Bulk | Active | Trench Field Stop | - | 150 A | 500 W | 2.4V @ 15V, 80A | 150 µA | 4.6 nF @ 25 V | 1200 V | Standard | Yes | -40°C ~ 175°C (TJ) | Through Hole | SP3 |
|
|
APTGL90H120T3GIGBT MODULE 1200V 110A 385W SP3 Microchip Technology |
4,210 | - |
|
数据表 |
- | SP3 | Bulk | Active | Trench Field Stop | Full Bridge | 110 A | 385 W | 2.25V @ 15V, 75A | 250 µA | 4.4 nF @ 25 V | 1200 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3 |
|

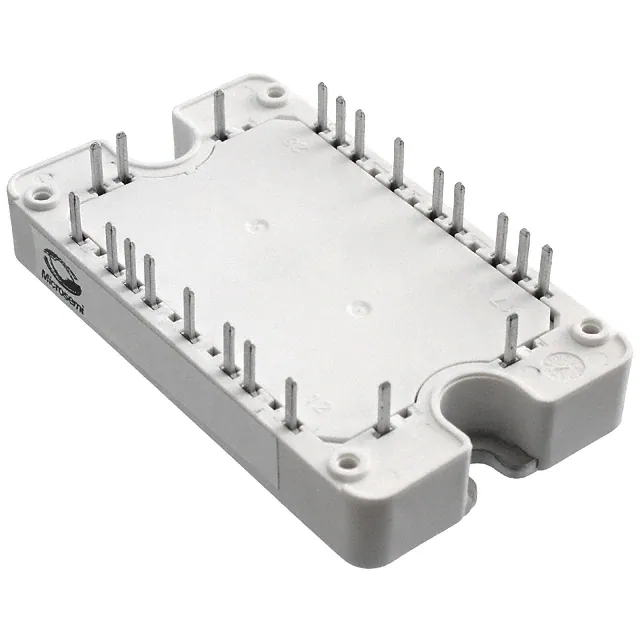

APTCV60HM45BC20T3GIGBT MODULE 600V 50A 250W SP3 Microchip Technology |
3,688 | - |
|
数据表 |
- | SP3 | Bulk | Active | Trench Field Stop | Boost Chopper, Full Bridge | 50 A | 250 W | 1.9V @ 15V, 50A | 250 µA | 3.15 nF @ 25 V | 600 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP3 |
|
|
APTGT50DH170TGIGBT MODULE 1700V 75A 312W SP4 Microchip Technology |
4,460 | - |
|
数据表 |
- | SP4 | Bulk | Active | Trench Field Stop | Asymmetrical Bridge | 75 A | 312 W | 2.4V @ 15V, 50A | 250 µA | 4.4 nF @ 25 V | 1700 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP4 |
|
APTGL180A120T3AGIGBT MODULE 1200V 230A 940W SP3 Microchip Technology |
9,081 | - |
|
数据表 |
- | SP3 | Bulk | Active | Trench Field Stop | Half Bridge | 230 A | 940 W | 2.2V @ 15V, 150A | 300 µA | 9.3 nF @ 25 V | 1200 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3 |
|
|
APTGT100H60TGIGBT MODULE 600V 150A 340W SP4 Microchip Technology |
5,128 | - |
|
数据表 |
- | SP4 | Bulk | Active | Trench Field Stop | Full Bridge Inverter | 150 A | 340 W | 1.9V @ 15V, 100A | 250 µA | 6.1 nF @ 25 V | 600 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP4 |
|
|
APTGLQ200A120T3AGIGBT MOD 1200V 400A 1250W SP3F Microchip Technology |
6,728 | - |
|
数据表 |
- | Module | Bulk | Active | Trench Field Stop | 2 Independent | 400 A | 1250 W | 2.4V @ 15V, 160A | 100 µA | 9.3 nF @ 25 V | 1200 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3F |
|
APTGF150H120GIGBT MODULE 1200V 200A 961W SP6 Microchip Technology |
2,698 | - |
|
数据表 |
- | SP6 | Bulk | Obsolete | NPT | Full Bridge Inverter | 200 A | 961 W | 3.7V @ 15V, 150A | 350 µA | 10.2 nF @ 25 V | 1200 V | Standard | No | - | Chassis Mount | SP6 |
|

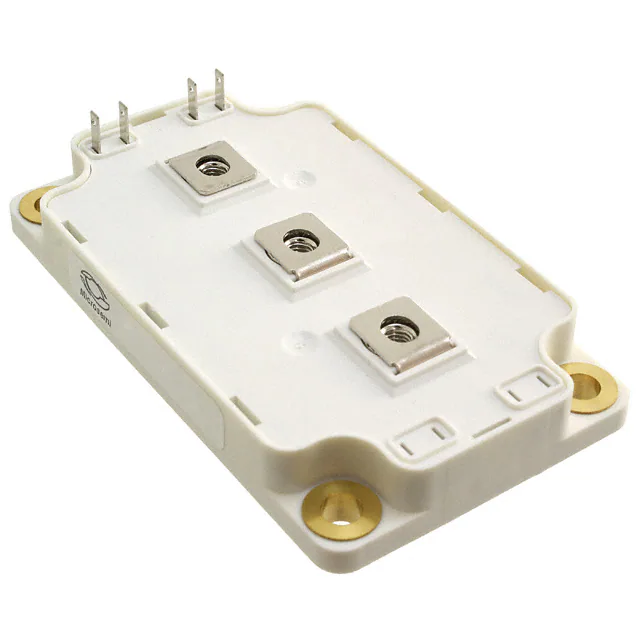

APTGF300A120GIGBT MODULE 1200V 400A 1780W SP6 Microchip Technology |
6,612 | - |
|
数据表 |
- | SP6 | Bulk | Obsolete | NPT | Half Bridge | 400 A | 1780 W | 3.9V @ 15V, 300A | 500 µA | 21 nF @ 25 V | 1200 V | Standard | No | - | Chassis Mount | SP6 |
|
|
APTGT100DH120TGIGBT MODULE 1200V 140A 480W SP4 Microchip Technology |
5,346 | - |
|
数据表 |
- | SP4 | Bulk | Active | Trench Field Stop | Asymmetrical Bridge | 140 A | 480 W | 2.1V @ 15V, 100A | 250 µA | 7.2 nF @ 25 V | 1200 V | Standard | Yes | - | Chassis Mount | SP4 |
