IGBT 模块
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | IGBT 类型 | 配置 | 电流 - 集电极 (Ic)（最大值） | 功率 - 最大值 | 导通电压 (Vce(on)）（最大值）@ Vge, Ic | 电流 - 集电极截止（最大值） | 输入电容 (Cies) @ Vce | 电压 - 集电极发射极击穿（最大值） | 输入 | NTC 热敏电阻 | 工作温度 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APTGT50DH120TGIGBT MODULE 1200V 75A 277W SP4 Microchip Technology |
7,245 | - |
|
数据表 |
- | SP4 | Bulk | Active | Trench Field Stop | Asymmetrical Bridge | 75 A | 277 W | 2.1V @ 15V, 50A | 250 µA | 3.6 nF @ 25 V | 1200 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP4 |
|
APTGT35X120T3GIGBT MODULE 1200V 55A 208W SP3 Microchip Technology |
8,510 | - |
|
数据表 |
- | SP3 | Bulk | Active | Trench Field Stop | Three Phase Inverter | 55 A | 208 W | 2.1V @ 15V, 35A | 250 µA | 2.5 nF @ 25 V | 1200 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP3 |
|
|
APTGLQ100H65T3GIGBT MODULE 650V 135A 350W SP3F Microchip Technology |
2,877 | - |
|
数据表 |
- | Module | Bulk | Active | Trench Field Stop | Full Bridge | 135 A | 350 W | 2.3V @ 15V, 100A | 50 µA | 6.15 nF @ 25 V | 650 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3F |
|
APTGT200A60T3AGIGBT MODULE 600V 290A 750W SP3 Microchip Technology |
2,359 | - |
|
数据表 |
- | SP3 | Bulk | Active | Trench Field Stop | Half Bridge | 290 A | 750 W | 1.9V @ 15V, 200A | 250 µA | 12.3 nF @ 25 V | 600 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3 |
|
|
APTGT30H170T3GIGBT MODULE 1700V 45A 210W SP3 Microchip Technology |
8,855 | - |
|
数据表 |
- | SP3 | Bulk | Active | Trench Field Stop | Full Bridge Inverter | 45 A | 210 W | 2.4V @ 15V, 30A | 250 µA | 2.5 nF @ 25 V | 1700 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP3 |
|

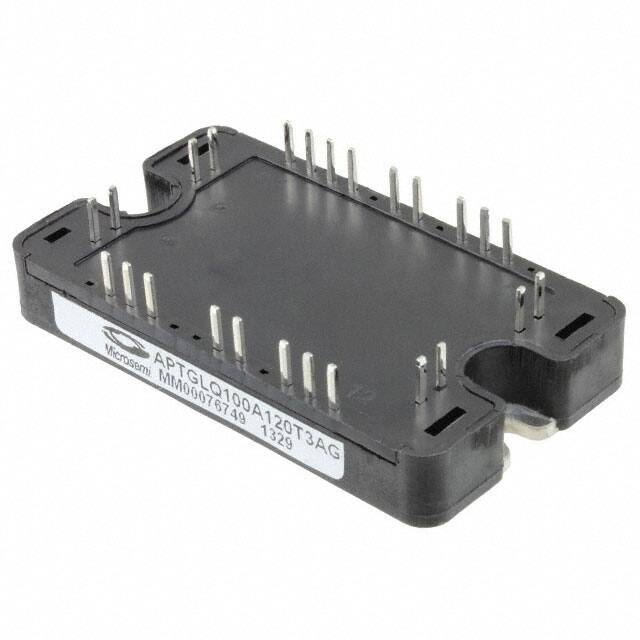

APTGLQ100A120T3AGIGBT MODULE 1200V 185A 650W SP3 Microchip Technology |
3,197 | - |
|
数据表 |
- | SP3 | Bulk | Active | Trench Field Stop | Half Bridge | 185 A | 650 W | 2.4V @ 15V, 100A | 50 µA | 6.15 nF @ 25 V | 1200 V | Standard | Yes | -40°C ~ 175°C (TJ) | Through Hole | SP3 |
|
|
APTGT100SK170TGIGBT MODULE 1700V 150A 560W SP4 Microchip Technology |
8,669 | - |
|
数据表 |
- | SP4 | Bulk | Active | Trench Field Stop | Single | 150 A | 560 W | 2.4V @ 15V, 100A | 250 µA | 9 nF @ 25 V | 1700 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP4 |
|
|
APTGT50A170TGIGBT MODULE 1700V 75A 312W SP4 Microchip Technology |
6,284 | - |
|
数据表 |
- | SP4 | Bulk | Active | Trench Field Stop | Half Bridge | 75 A | 312 W | 2.4V @ 15V, 50A | 250 µA | 4.4 nF @ 25 V | 1700 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP4 |
|
APTGT200DU60TGIGBT MODULE 600V 290A 625W SP4 Microchip Technology |
8,810 | - |
|
数据表 |
- | SP4 | Bulk | Active | Trench Field Stop | Dual, Common Source | 290 A | 625 W | 1.9V @ 15V, 200A | 250 µA | 12.3 nF @ 25 V | 600 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP4 |
|
|
APTGT150DH60TGIGBT MODULE 600V 225A 480W SP4 Microchip Technology |
5,701 | - |
|
数据表 |
- | SP4 | Bulk | Active | Trench Field Stop | Asymmetrical Bridge | 225 A | 480 W | 1.9V @ 15V, 150A | 250 µA | 9.2 nF @ 25 V | 600 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP4 |
