IGBT 模块
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | IGBT 类型 | 配置 | 电流 - 集电极 (Ic)（最大值） | 功率 - 最大值 | 导通电压 (Vce(on)）（最大值）@ Vge, Ic | 电流 - 集电极截止（最大值） | 输入电容 (Cies) @ Vce | 电压 - 集电极发射极击穿（最大值） | 输入 | NTC 热敏电阻 | 工作温度 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APTGF75H120TGIGBT MODULE 1200V 100A 500W SP4 Microchip Technology |
9,859 | - |
|
数据表 |
- | SP4 | Bulk | Obsolete | NPT | Full Bridge Inverter | 100 A | 500 W | 3.7V @ 15V, 75A | 250 µA | 5.1 nF @ 25 V | 1200 V | Standard | Yes | - | Chassis Mount | SP4 |
|
APTCV60TLM99T3GIGBT MODULE 600V 50A 90W SP3 Microchip Technology |
2,080 | - |
|
数据表 |
- | SP3 | Bulk | Active | Trench Field Stop | Three Level Inverter - IGBT, FET | 50 A | 90 W | 1.9V @ 15V, 30A | 250 µA | 1.6 nF @ 25 V | 600 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3 |
|
APTGT50A170T1GIGBT MODULE 1700V 75A 312W SP1 Microchip Technology |
7,055 | - |
|
数据表 |
- | SP1 | Bulk | Active | Trench Field Stop | Half Bridge | 75 A | 312 W | 2.4V @ 15V, 50A | 250 µA | 4.4 nF @ 25 V | 1700 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP1 |
|
|
APTGLQ50H65T3GIGBT MODULE 650V 70A 175W SP3F Microchip Technology |
6,912 | - |
|
数据表 |
- | Module | Bulk | Active | Trench Field Stop | Full Bridge | 70 A | 175 W | 2.3V @ 15V, 50A | 50 µA | 3.1 nF @ 25 V | 650 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3F |
|

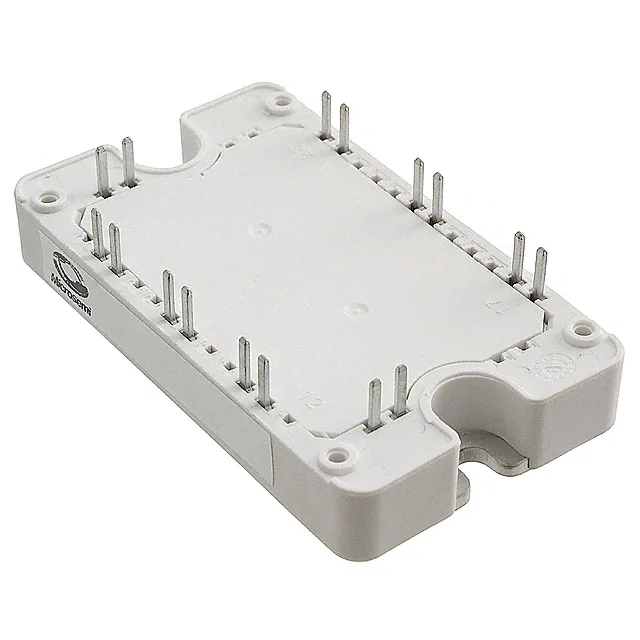

APTGT100BB60T3GIGBT MODULE 600V 150A 340W SP3 Microchip Technology |
5,006 | - |
|
数据表 |
- | SP3 | Bulk | Active | Trench Field Stop | Half Bridge | 150 A | 340 W | 1.9V @ 15V, 100A | 250 µA | 6.1 nF @ 25 V | 600 V | Standard | Yes | -40°C ~ 175°C (TJ) | Through Hole | SP3 |
|
APT50GF120JRDQ3IGBT MOD 1200V 120A 521W ISOTOP Microchip Technology |
2,806 | - |
|
数据表 |
- | ISOTOP | Tube | Active | NPT | Single | 120 A | 521 W | 3V @ 15V, 75A | 750 µA | 5.32 nF @ 25 V | 1200 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
|
|
APTGT50DA120TGIGBT MODULE 1200V 75A 277W SP4 Microchip Technology |
3,094 | - |
|
数据表 |
- | SP4 | Bulk | Active | Trench Field Stop | Single | 75 A | 277 W | 2.1V @ 15V, 50A | 250 µA | 3.6 nF @ 25 V | 1200 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP4 |
|
|
APTGT50SK120TGIGBT MODULE 1200V 75A 277W SP4 Microchip Technology |
8,212 | - |
|
数据表 |
- | SP4 | Bulk | Active | Trench Field Stop | Single | 75 A | 277 W | 2.1V @ 15V, 50A | 250 µA | 3.6 nF @ 25 V | 1200 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP4 |
|

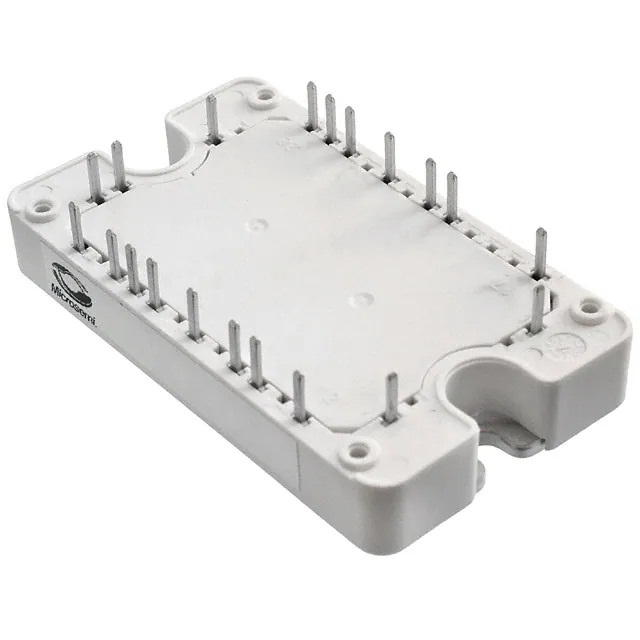

APTGT50H60RT3GIGBT MODULE 600V 80A 176W SP3 Microchip Technology |
5,780 | - |
|
数据表 |
- | SP3 | Bulk | Active | Trench Field Stop | Full Bridge Inverter | 80 A | 176 W | 1.9V @ 15V, 50A | 250 µA | 3.15 nF @ 25 V | 600 V | Single Phase Bridge Rectifier | Yes | - | Chassis Mount | SP3 |
|
|
APTGLQ40HR120CT3GIGBT MODULE 1200V 75A 250W SP3 Microchip Technology |
2,264 | - |
|
数据表 |
- | SP3 | Bulk | Active | Trench Field Stop | - | 75 A | 250 W | 2.4V @ 15V, 40A | 100 µA | 2.3 nF @ 25 V | 1200 V | Standard | Yes | -40°C ~ 175°C (TJ) | Through Hole | SP3 |
