IGBT 模块
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | IGBT 类型 | 配置 | 电流 - 集电极 (Ic)（最大值） | 功率 - 最大值 | 导通电压 (Vce(on)）（最大值）@ Vge, Ic | 电流 - 集电极截止（最大值） | 输入电容 (Cies) @ Vce | 电压 - 集电极发射极击穿（最大值） | 输入 | NTC 热敏电阻 | 工作温度 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APTGT150A60T1GIGBT MODULE 600V 225A 480W SP1 Microchip Technology |
2,602 | - |
|
数据表 |
- | SP1 | Bulk | Active | Trench Field Stop | Half Bridge | 225 A | 480 W | 1.9V @ 15V, 150A | 250 µA | 9.2 nF @ 25 V | 600 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP1 |
|
APTGL60DDA120T3GIGBT MODULE 1200V 80A 280W SP3 Microchip Technology |
4,266 | - |
|
数据表 |
- | SP3 | Bulk | Active | Trench Field Stop | Dual Boost Chopper | 80 A | 280 W | 2.25V @ 15V, 50A | 250 µA | 2.77 nF @ 25 V | 1200 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3 |
|
APTGL40H120T1GIGBT MODULE 1200V 65A 220W SP1 Microchip Technology |
4,706 | - |
|
数据表 |
- | SP1 | Bulk | Active | Trench Field Stop | Full Bridge | 65 A | 220 W | 2.25V @ 15V, 35A | 250 µA | 1.95 nF @ 25 V | 1200 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP1 |
|
|
APTCV40H60CT1GIGBT MODULE 600V 80A 176W SP1 Microchip Technology |
5,673 | - |
|
数据表 |
- | SP1 | Bulk | Active | Trench Field Stop | Full Bridge | 80 A | 176 W | 1.9V @ 15V, 50A | 250 µA | 3.15 nF @ 25 V | 600 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP1 |
|

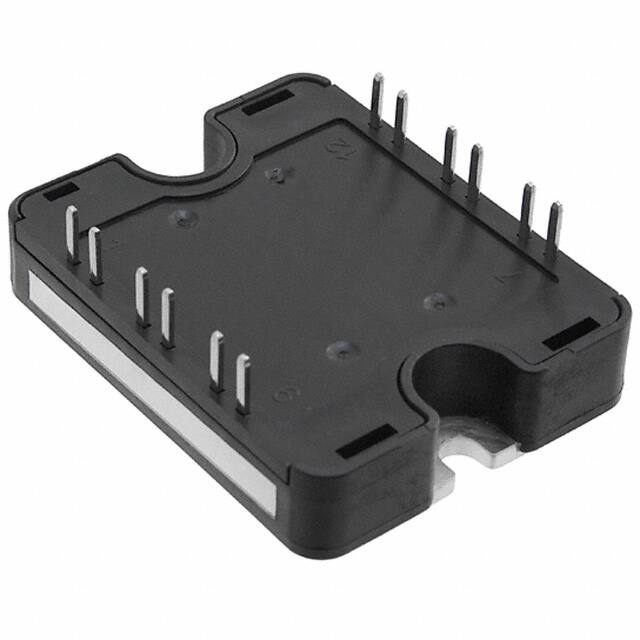

APTGT75H60T1GIGBT MODULE 600V 100A 250W SP1 Microchip Technology |
7,312 | - |
|
数据表 |
- | SP1 | Bulk | Active | Trench Field Stop | Full Bridge Inverter | 100 A | 250 W | 1.9V @ 15V, 75A | 250 µA | 4.62 nF @ 25 V | 600 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP1 |
|
|
APTGT30X60T3GIGBT MODULE 600V 50A 90W SP3 Microchip Technology |
9,541 | - |
|
数据表 |
- | SP3 | Bulk | Active | Trench Field Stop | Three Phase Inverter | 50 A | 90 W | 1.9V @ 15V, 30A | 250 µA | 1.6 nF @ 25 V | 600 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3 |
|
APTGT50DDA120T3GIGBT MODULE 1200V 75A 270W SP3 Microchip Technology |
7,788 | - |
|
数据表 |
- | SP3 | Bulk | Active | Trench Field Stop | Dual Boost Chopper | 75 A | 270 W | 2.1V @ 15V, 50A | 250 µA | 3.6 nF @ 25 V | 1200 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3 |
|
|
APTGT50TL60T3GIGBT MODULE 600V 80A 176W SP3 Microchip Technology |
6,992 | - |
|
数据表 |
- | SP3 | Bulk | Active | Trench Field Stop | Three Level Inverter | 80 A | 176 W | 1.9V @ 15V, 50A | 250 µA | 3.15 nF @ 25 V | 600 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3 |
|
APTGF150A120TGIGBT MODULE 1200V 200A 961W SP4 Microchip Technology |
7,459 | - |
|
数据表 |
- | SP4 | Bulk | Obsolete | NPT | Half Bridge | 200 A | 961 W | 3.7V @ 15V, 150A | 350 µA | 10.2 nF @ 25 V | 1200 V | Standard | Yes | - | Chassis Mount | SP4 |
|
APTGT75A120T1GIGBT MODULE 1200V 110A 357W SP1 Microchip Technology |
7,219 | - |
|
数据表 |
- | SP1 | Bulk | Active | Trench Field Stop | Half Bridge | 110 A | 357 W | 2.1V @ 15V, 75A | 250 µA | 5.34 nF @ 25 V | 1200 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP1 |
