固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1025-76KFIXED IND 220UH 52MA 21 OHM TH |
7,114 | - |
|
数据表 |
Military, MIL-PRF-M15305, MS75085 | Axial | Tape & Reel (TR) | Active | - | Ferrite | ±10% | 52 mA | - | - | Unshielded | 21Ohm Max | 220 µH | 30 @ 790kHz | 9MHz | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - | -55°C ~ 105°C | 790 kHz | - |
|
HCM1A1307-1R2-RFIXED IND 1.2UH 21.8A 2.12 MOHM |
0 | - |
|
数据表 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 21.8 A | 28A | - | Shielded | 2.12mOhm Max | 1.2 µH | - | - | Surface Mount | AEC-Q200 | 0.539" L x 0.512" W (13.70mm x 13.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.256" (6.50mm) |
|
SDCL0603Q5N1JT02B03FIXED IND 5.1NH 350MA 400MOHM SM |
0 | - |
|
数据表 |
SDCL0603Q-02-B | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±5% | 350 mA | - | 0201 | Unshielded | 400mOhm Max | 5.1 nH | 13 @ 500MHz | 5.9GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
P1330R-473KFIXED IND 47UH 467MA 792MOHM SMD |
5,500 | - |
|
数据表 |
P1330R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±10% | 467 mA | 246mA | - | Unshielded | 792mOhm Max | 47 µH | - | - | Surface Mount | - | 0.313" L x 0.115" W (7.94mm x 2.92mm) | - | -55°C ~ 125°C | 1 kHz | 0.145" (3.68mm) |
|
|
SDCL0603Q10NHT02B03FIXED IND 10NH 250MA 700MOHM SMD |
0 | - |
|
数据表 |
SDCL0603Q-02-B | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±3% | 250 mA | - | 0201 | Unshielded | 700mOhm Max | 10 nH | 13 @ 500MHz | 3.8GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
HCM1A1307-7R8-RFIXED IND 7.8UH 8.8A 11.5MOHM SM |
0 | - |
|
数据表 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 8.8 A | 16A | - | Shielded | 11.5mOhm Max | 7.8 µH | - | - | Surface Mount | AEC-Q200 | 0.539" L x 0.512" W (13.70mm x 13.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.256" (6.50mm) |
|
|
P1330R-223KFIXED IND 22UH 694MA 384MOHM SMD |
629 | - |
|
数据表 |
P1330R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±10% | 694 mA | 348mA | - | Unshielded | 384mOhm Max | 22 µH | - | - | Surface Mount | - | 0.313" L x 0.115" W (7.94mm x 2.92mm) | - | -55°C ~ 125°C | 1 kHz | 0.145" (3.68mm) |
|
|
SDCL0603Q1N0CT02B03FIXED IND 1NH 750MA 80 MOHM SMD |
0 | - |
|
数据表 |
SDCL0603Q-02-B | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.2nH | 750 mA | - | 0201 | Unshielded | 80mOhm Max | 1 nH | 13 @ 500MHz | 17GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|

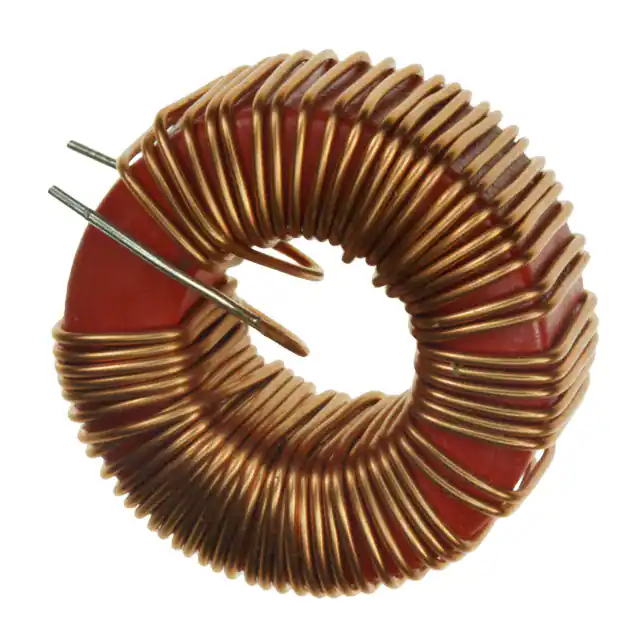

744103FIXED IND 109UH 1.3A 300 MOHM TH |
120 | - |
|
数据表 |
WE-SI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | ±20% | 1.3 A | 1A | - | Unshielded | 300mOhm Max | 109 µH | - | 9.2MHz | Through Hole | - | 0.591" Dia x 0.315" W (15.00mm x 8.00mm) | - | -40°C ~ 105°C | 10 kHz | - |
|
XAL4040-153MECFIXED IND 15UH 2.8A 120MOHM SM |
54,442 | - |
|
数据表 |
XAL4000 | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | ±20% | 2.8 A | 2.9A | 1616 | Shielded | 120mOhm Max | 15 µH | - | 20MHz | Surface Mount | AEC-Q200 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.161" (4.10mm) |
|
|
SDCL0603Q12NJT02B03FIXED IND 12NH 250MA 700MOHM SMD |
0 | - |
|
数据表 |
SDCL0603Q-02-B | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±5% | 250 mA | - | 0201 | Unshielded | 700mOhm Max | 12 nH | 13 @ 500MHz | 3.4GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
PA2050.233NLFIXED IND 23UH 8A 13.7 MOHM SMD |
695 | - |
|
数据表 |
PA2050NL | Nonstandard | Tray | Active | Wirewound | - | ±10% | 8 A | 9.8A | - | Shielded | 13.7mOhm | 23 µH | - | - | Surface Mount | - | 0.875" L x 0.750" W (22.23mm x 19.05mm) | - | -40°C ~ 130°C | - | 0.480" (12.20mm) |
|
|
XAL4040-103MECFIXED IND 10UH 3.1A 92.4MOHM SM |
30,905 | - |
|
数据表 |
XAL4000 | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | ±20% | 3.1 A | 3A | 1616 | Shielded | 92.4mOhm Max | 10 µH | - | 24MHz | Surface Mount | AEC-Q200 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.161" (4.10mm) |
|
PG0077.202NLTFIXED IND 2UH 23A 2.9 MOHM SMD |
1,909 | - |
|
数据表 |
PG0077NL | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 23 A | 24A | - | Unshielded | 2.9mOhm Max | 2 µH | - | - | Surface Mount | - | 0.551" L x 0.512" W (14.00mm x 13.00mm) | - | -40°C ~ 95°C | 100 kHz | 0.256" (6.50mm) |
|
|
SDCL0603Q4N7HT02B03FIXED IND 4.7NH 350MA 400MOHM SM |
0 | - |
|
数据表 |
SDCL0603Q-02-B | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±3% | 350 mA | - | 0201 | Unshielded | 400mOhm Max | 4.7 nH | 13 @ 500MHz | 6.2GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
XAL4040-822MECFIXED IND 8.2UH 3.4A 66.9MOHM SM |
25,491 | - |
|
数据表 |
XAL4000 | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | ±20% | 3.4 A | 4A | 1616 | Shielded | 66.9mOhm Max | 8.2 µH | - | 27MHz | Surface Mount | AEC-Q200 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.161" (4.10mm) |
|
744355019FIXED IND 190NH 29A 0.5 MOHM SMD |
395 | - |
|
数据表 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 29 A | 60A | 1350 | Shielded | 0.5mOhm | 190 nH | - | 225MHz | Surface Mount | AEC-Q200 | 0.512" L x 0.504" W (13.00mm x 12.80mm) | - | -40°C ~ 155°C | 100 kHz | 0.197" (5.00mm) |
|
|
SDCL0603Q56NHT02B03FIXED IND 56NH 100MA 2.8 OHM SMD |
0 | - |
|
数据表 |
SDCL0603Q-02-B | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±3% | 100 mA | - | 0201 | Unshielded | 2.8Ohm Max | 56 nH | 11 @ 300MHz | 1.4GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 300 MHz | 0.013" (0.33mm) |
|
|
SDCL0603Q15NHT02B03FIXED IND 15NH 250MA 700MOHM SMD |
0 | - |
|
数据表 |
SDCL0603Q-02-B | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±3% | 250 mA | - | 0201 | Unshielded | 700mOhm Max | 15 nH | 13 @ 500MHz | 2.6GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
7843321000WE-CHSA SMT HIGH CURRENT INDUCTO |
197 | - |
|
数据表 |
WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 7.8 A | 10.8A | - | Shielded | 20.35mOhm Max | 10 µH | - | 30MHz | Surface Mount | AEC-Q200 | 0.480" L x 0.480" W (12.20mm x 12.20mm) | - | -55°C ~ 150°C | 100 kHz | 0.474" (12.05mm) |
