固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

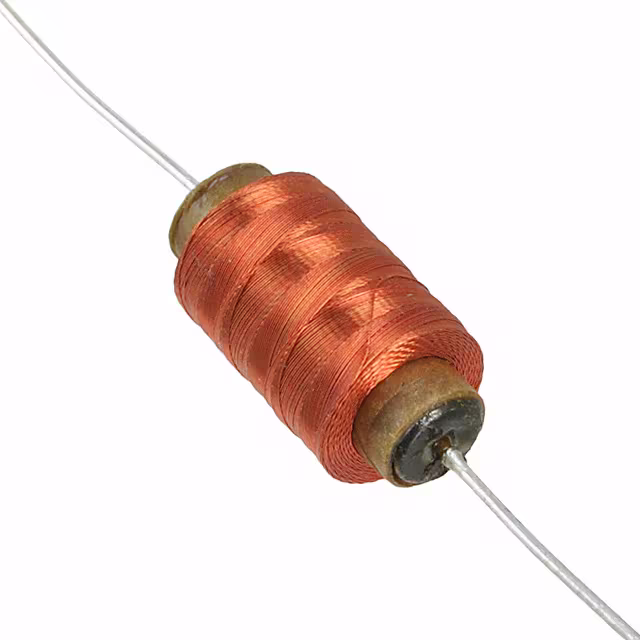

70F121AF-RCFIXED IND 120MH 48MA 288 OHM TH Bourns Inc. |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 48 mA | - | - | Unshielded | 288Ohm Max | 120 mH | 46 @ 25kHz | 84kHz | Through Hole | - | 0.480" Dia x 0.880" L (12.20mm x 22.35mm) | - | -55°C ~ 105°C | 25 kHz | - |
|
70F124AI-RCFIXED IND 120UH 135MA 8.16OHM TH Bourns Inc. |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | ±5% | 135 mA | - | - | Unshielded | 8.16Ohm Max | 120 µH | 40 @ 790kHz | 3.2MHz | Through Hole | - | 0.160" Dia x 0.250" L (4.06mm x 6.35mm) | - | -55°C ~ 105°C | 790 kHz | - |
|
70F504AI-RCFIXED IND 500UH 91MA 18 OHM TH Bourns Inc. |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | ±5% | 91 mA | - | - | Unshielded | 18Ohm Max | 500 µH | 49 @ 790kHz | 1.8MHz | Through Hole | - | 0.190" Dia x 0.250" L (4.83mm x 6.35mm) | - | -55°C ~ 105°C | 790 kHz | - |
|
70F822AF-RCFIXED IND 82MH 32MA 238 OHM TH Bourns Inc. |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 32 mA | - | - | Unshielded | 238Ohm Max | 82 mH | 50 @ 79kHz | 168kHz | Through Hole | - | 0.430" Dia x 0.630" L (10.92mm x 16.00mm) | - | -55°C ~ 105°C | 79 kHz | - |
|
|
70F126AI-RCFIXED IND 1.2UH 1.666A 72MOHM TH Bourns Inc. |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | ±10% | 1.666 A | - | - | Unshielded | 72mOhm Max | 1.2 µH | 45 @ 7.9MHz | 118MHz | Through Hole | - | 0.160" Dia x 0.250" L (4.06mm x 6.35mm) | - | -55°C ~ 105°C | 7.9 MHz | - |
|

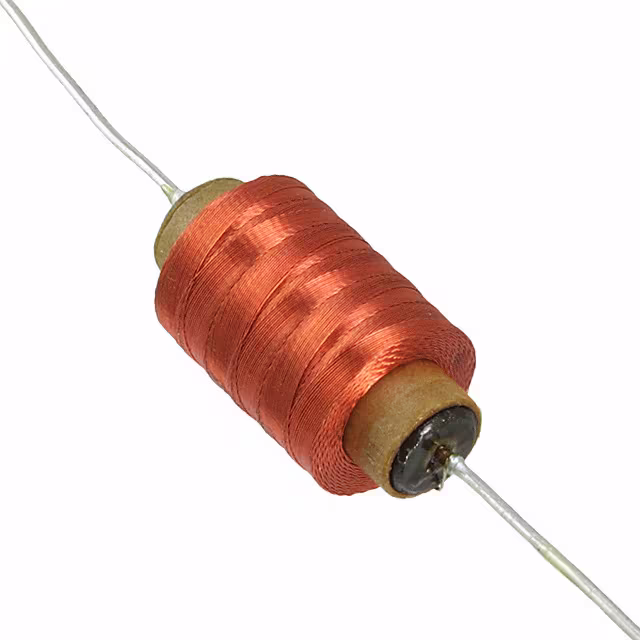

70F151AF-RCFIXED IND 150MH 44MA 328 OHM TH Bourns Inc. |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 44 mA | - | - | Unshielded | 328Ohm Max | 150 mH | 49 @ 25kHz | 77kHz | Through Hole | - | 0.500" Dia x 0.880" L (12.70mm x 22.35mm) | - | -55°C ~ 105°C | 25 kHz | - |
|
|
70F562AF-RCFIXED IND 56MH 36MA 189 OHM TH Bourns Inc. |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 36 mA | - | - | Unshielded | 189Ohm Max | 56 mH | 57 @ 79kHz | 188kHz | Through Hole | - | 0.400" Dia x 0.630" L (10.16mm x 16.00mm) | - | -55°C ~ 105°C | 79 kHz | - |
|
|
70F823AI-RCFIXED IND 8.2MH 40MA 92.4 OHM TH Bourns Inc. |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | ±5% | 40 mA | - | - | Unshielded | 92.4Ohm Max | 8.2 mH | 48 @ 250kHz | 600kHz | Through Hole | - | 0.330" Dia x 0.380" L (8.38mm x 9.65mm) | - | -55°C ~ 105°C | 250 kHz | - |
|
|
70F154AI-RCFIXED IND 150UH 135MA 8.16OHM TH Bourns Inc. |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | ±5% | 135 mA | - | - | Unshielded | 8.16Ohm Max | 150 µH | 47 @ 790kHz | 3MHz | Through Hole | - | 0.160" Dia x 0.250" L (4.06mm x 6.35mm) | - | -55°C ~ 105°C | 790 kHz | - |
|
|
70F564AI-RCFIXED IND 560UH 88MA 19.2 OHM TH Bourns Inc. |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | ±5% | 88 mA | - | - | Unshielded | 19.2Ohm Max | 560 µH | 41 @ 790kHz | 1.7MHz | Through Hole | - | 0.190" Dia x 0.250" L (4.83mm x 6.35mm) | - | -55°C ~ 105°C | 790 kHz | - |
