固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CM100505-2N2DLFIXED IND 2.2NH 400MA 90MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
CM100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Alumina | ±0.3nH | 400 mA | - | 0402 (1005 Metric) | Unshielded | 90mOhm Max | 2.2 nH | 8 @ 100MHz | 6GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -40°C ~ 100°C | 100 MHz | 0.024" (0.60mm) |
|
|
CM100505-2N7DLFIXED IND 2.7NH 400MA 100MOHM SM Bourns Inc. |
0 | - |
|
数据表 |
CM100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Alumina | ±0.3nH | 400 mA | - | 0402 (1005 Metric) | Unshielded | 100mOhm Max | 2.7 nH | 8 @ 100MHz | 5.5GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -40°C ~ 100°C | 100 MHz | 0.024" (0.60mm) |
|
|
CM100505-3N3DLFIXED IND 3.3NH 400MA 120MOHM SM Bourns Inc. |
0 | - |
|
数据表 |
CM100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Alumina | ±0.3nH | 400 mA | - | 0402 (1005 Metric) | Unshielded | 120mOhm Max | 3.3 nH | 8 @ 100MHz | 5.5GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -40°C ~ 100°C | 100 MHz | 0.024" (0.60mm) |
|
|
CM100505-3N9DLFIXED IND 3.9NH 360MA 150MOHM SM Bourns Inc. |
0 | - |
|
数据表 |
CM100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Alumina | ±0.3nH | 360 mA | - | 0402 (1005 Metric) | Unshielded | 150mOhm Max | 3.9 nH | 8 @ 100MHz | 5.2GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -40°C ~ 100°C | 100 MHz | 0.024" (0.60mm) |
|
|
CM100505-4N7DLFIXED IND 4.7NH 360MA 170MOHM SM Bourns Inc. |
0 | - |
|
数据表 |
CM100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Alumina | ±0.3nH | 360 mA | - | 0402 (1005 Metric) | Unshielded | 170mOhm Max | 4.7 nH | 8 @ 100MHz | 4.8GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -40°C ~ 100°C | 100 MHz | 0.024" (0.60mm) |
|
|
CM100505-5N6DLFIXED IND 5.6NH 340MA 190MOHM SM Bourns Inc. |
0 | - |
|
数据表 |
CM100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Alumina | ±0.3nH | 340 mA | - | 0402 (1005 Metric) | Unshielded | 190mOhm Max | 5.6 nH | 8 @ 100MHz | 4.6GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -40°C ~ 100°C | 100 MHz | 0.024" (0.60mm) |
|
|
CM100505-6N8JLFIXED IND 6.8NH 320MA 300MOHM SM Bourns Inc. |
0 | - |
|
数据表 |
CM100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Alumina | ±5% | 320 mA | - | 0402 (1005 Metric) | Unshielded | 300mOhm Max | 6.8 nH | 8 @ 100MHz | 4GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -40°C ~ 100°C | 100 MHz | 0.024" (0.60mm) |
|

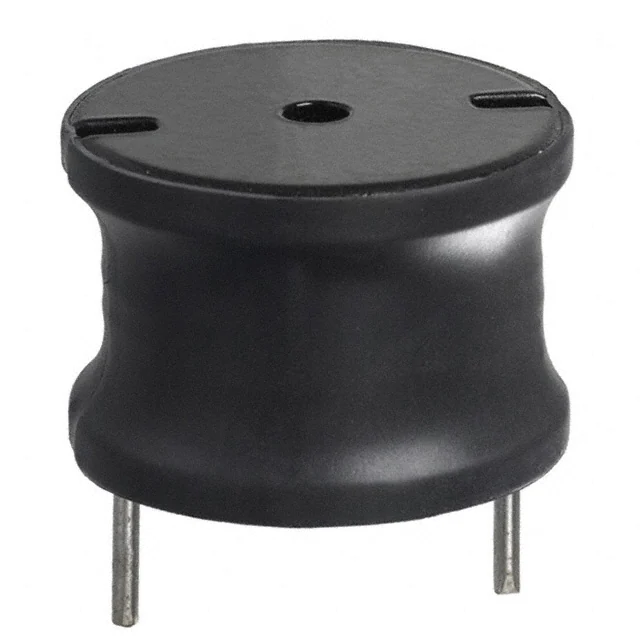

1140-271K-1-RCFIXED IND 270UH 7A 56 MOHM TH Bourns Inc. |
0 | - |
|
数据表 |
1140 | Radial | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 7 A | 12.4A | - | Unshielded | 56mOhm Max | 270 µH | - | - | Through Hole | - | 1.500" Dia (38.10mm) | - | -55°C ~ 105°C | 1 kHz | 1.030" (26.16mm) |
|
2000-2R0-V-RCFIXED IND 2UH 15.6A 2.7 MOHM TH Bourns Inc. |
0 | - |
|
数据表 |
2000 | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | - | ±20% | 15.6 A | - | - | Unshielded | 2.7mOhm Max | 2 µH | - | - | Through Hole | - | 0.680" Dia x 0.410" W (17.27mm x 10.41mm) | - | -55°C ~ 105°C | 1 kHz | - |
|
|
2000-2R7-V-RCFIXED IND 2.7UH 14.7A 3 MOHM TH Bourns Inc. |
0 | - |
|
数据表 |
2000 | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | - | ±20% | 14.7 A | - | - | Unshielded | 3mOhm Max | 2.7 µH | - | - | Through Hole | - | 0.680" Dia x 0.410" W (17.27mm x 10.41mm) | - | -55°C ~ 105°C | 1 kHz | - |
