固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

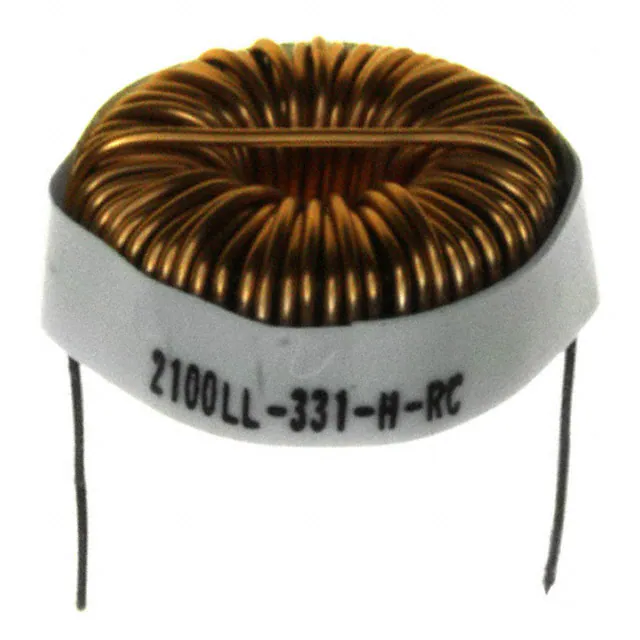

2100LL-331-H-RCFIXED IND 330UH 2.5A 103 MOHM TH Bourns Inc. |
1,135 | - |
|
数据表 |
2100LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | ±15% | 2.5 A | - | - | Shielded | 103mOhm Max | 330 µH | - | - | Through Hole | - | 0.860" Dia (21.84mm) | - | -55°C ~ 125°C | 1 kHz | 0.450" (11.43mm) |
|
2100LL-220-H-RCFIXED IND 22UH 7.5A 12 MOHM TH Bourns Inc. |
630 | - |
|
数据表 |
2100LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | ±15% | 7.5 A | - | - | Shielded | 12mOhm Max | 22 µH | - | - | Through Hole | - | 0.860" Dia (21.84mm) | - | -55°C ~ 125°C | 1 kHz | 0.450" (11.43mm) |
|

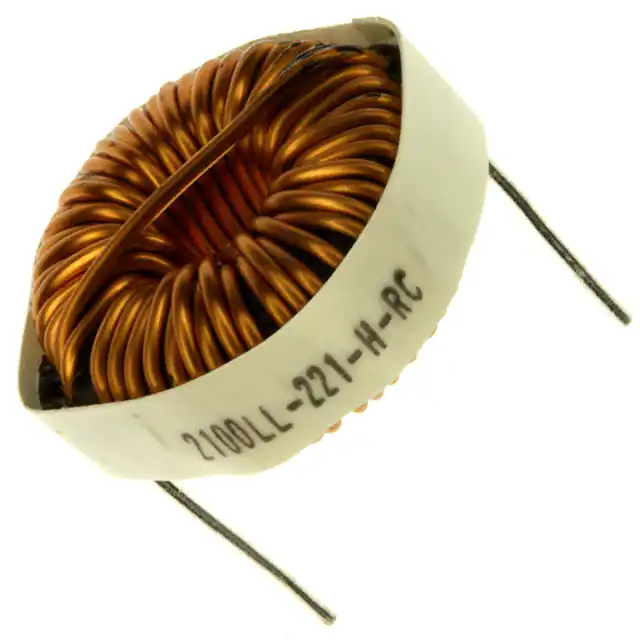

2100LL-221-H-RCFIXED IND 220UH 3.5A 53 MOHM TH Bourns Inc. |
557 | - |
|
数据表 |
2100LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | ±15% | 3.5 A | - | - | Shielded | 53mOhm Max | 220 µH | - | - | Through Hole | - | 0.860" Dia (21.84mm) | - | -55°C ~ 125°C | 1 kHz | 0.450" (11.43mm) |
|
2100LL-470-H-RCFIXED IND 47UH 5.2A 24 MOHM TH Bourns Inc. |
543 | - |
|
数据表 |
2100LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | ±15% | 5.2 A | - | - | Shielded | 24mOhm Max | 47 µH | - | - | Through Hole | - | 0.860" Dia (21.84mm) | - | -55°C ~ 125°C | 1 kHz | 0.450" (11.43mm) |
|

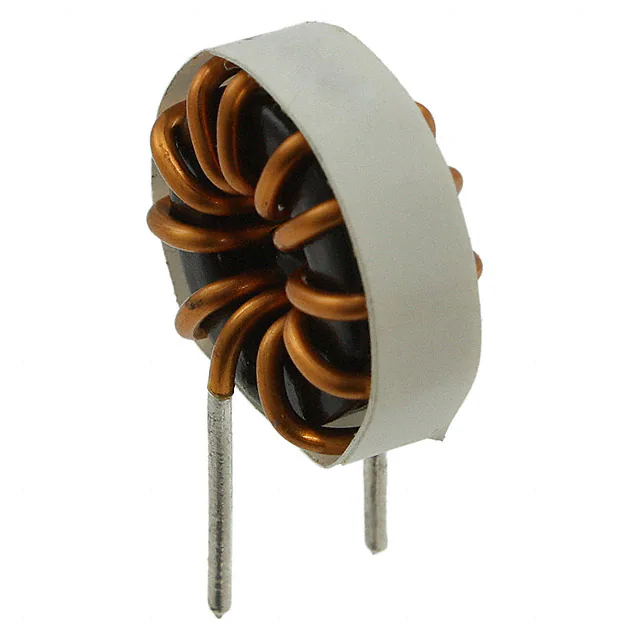

2100LL-331-V-RCFIXED IND 330UH 2.5A 103 MOHM TH Bourns Inc. |
434 | - |
|
数据表 |
2100LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | ±15% | 2.5 A | - | - | Shielded | 103mOhm Max | 330 µH | - | - | Through Hole | - | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - | -55°C ~ 125°C | 1 kHz | - |
|
|
2100LL-100-V-RCFIXED IND 10UH 11.4A 5 MOHM TH Bourns Inc. |
278 | - |
|
数据表 |
2100LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | ±15% | 11.4 A | - | - | Shielded | 5mOhm Max | 10 µH | - | - | Through Hole | - | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - | -55°C ~ 125°C | 1 kHz | - |
|
PQ2614BLA-1R0KFIXED IND 1UH 30A 1.2 MOHM SMD Bourns Inc. |
996 | - |
|
数据表 |
PQ2614BLA | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | ±10% | 30 A | - | - | Shielded | 1.2mOhm Max | 1 µH | - | 61MHz | Surface Mount | AEC-Q200 | 1.098" L x 0.780" W (27.90mm x 19.80mm) | - | -40°C ~ 155°C | 100 kHz | 0.630" (16.00mm) |
|
|
PQ2614BLA-100KFIXED IND 10UH 30A 1.6 MOHM SMD Bourns Inc. |
692 | - |
|
数据表 |
PQ2614BLA | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | ±10% | 30 A | 16.2A | - | Shielded | 1.6mOhm Max | 10 µH | - | 20MHz | Surface Mount | AEC-Q200 | 1.098" L x 0.780" W (27.90mm x 19.80mm) | - | -40°C ~ 155°C | 100 kHz | 0.630" (16.00mm) |
|
|
PQ2614BLA-220KFIXED IND 22UH 30A 1.6 MOHM SMD Bourns Inc. |
575 | - |
|
数据表 |
PQ2614BLA | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | ±10% | 30 A | 6A | - | Shielded | 1.6mOhm Max | 22 µH | - | 10MHz | Surface Mount | AEC-Q200 | 1.098" L x 0.780" W (27.90mm x 19.80mm) | - | -40°C ~ 155°C | 100 kHz | 0.630" (16.00mm) |
|
|
PQ2614BLA-150KFIXED IND 15UH 30A 1.6 MOHM SMD Bourns Inc. |
475 | - |
|
数据表 |
PQ2614BLA | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | ±10% | 30 A | 9.8A | - | Shielded | 1.6mOhm Max | 15 µH | - | 15MHz | Surface Mount | AEC-Q200 | 1.098" L x 0.780" W (27.90mm x 19.80mm) | - | -40°C ~ 155°C | 100 kHz | 0.630" (16.00mm) |
