固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9250A-225-RCFIXED IND 2.2MH 50MA 33.8 OHM TH |
288 | - |
|
数据表 |
9250A | Axial | Bulk | Active | Molded | Ferrite | ±10% | 50 mA | 27mA | - | Shielded | 33.8Ohm Max | 2.2 mH | 45 @ 250kHz | 970kHz | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - | -55°C ~ 125°C | 250 kHz | - |
|
9250A-275-RCFIXED IND 2.7MH 40MA 47.3 OHM TH |
183 | - |
|
数据表 |
9250A | Axial | Bulk | Active | Molded | Ferrite | ±10% | 40 mA | 25mA | - | Shielded | 47.3Ohm Max | 2.7 mH | 45 @ 250kHz | 920kHz | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - | -55°C ~ 125°C | 250 kHz | - |
|
9250A-332-RCFIXED IND 3.3UH 480MA 350MOHM TH |
126 | - |
|
数据表 |
9250A | Axial | Bulk | Active | Molded | Ferrite | ±10% | 480 mA | 480mA | - | Shielded | 350mOhm Max | 3.3 µH | 44 @ 7.9MHz | 85MHz | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - | -55°C ~ 125°C | 7.9 MHz | - |
|
7847131020WE-RCIT ROD CORE INDUCTOR THT 2. |
118 | - |
|
数据表 |
WE-RCIT | Radial, Horizontal Cylinder (Open) | Bulk | Active | Wirewound | - | ±25% | 15 A | 34A | Radial | Unshielded | 1.7mOhm | 2 µH | - | 110MHz | Through Hole | AEC-Q200 | 0.394" Dia x 1.012" L (10.00mm x 25.70mm) | - | -40°C ~ 150°C | 10 kHz | - |
|
PD0120.503NLFIXED IND 56.5UH 3.4A 82.5 MOHM |
1,070 | - |
|
数据表 |
PD0120NL | Nonstandard | Tray | Active | Wirewound | - | ±10% | 3.4 A | 4.3A | - | Unshielded | 82.5mOhm Max | 56.5 µH | - | - | Surface Mount | - | 0.638" L x 0.628" W (16.20mm x 15.95mm) | - | -40°C ~ 125°C | - | 0.323" (8.20mm) |
|

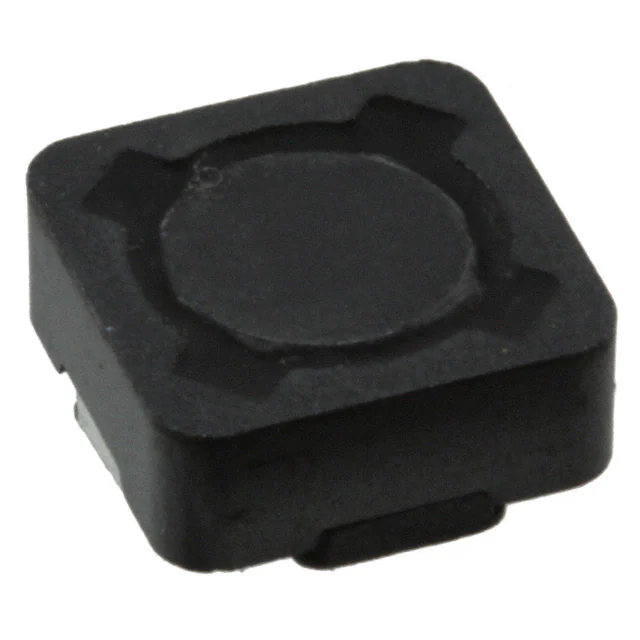

DRA73-6R8-RFIXED IND 6.8UH 2.62A 41MOHM SMD |
5,448 | - |
|
数据表 |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 2.62 A | 2.96A | - | Shielded | 41mOhm | 6.8 µH | - | - | Surface Mount | AEC-Q200 | 0.299" L x 0.299" W (7.60mm x 7.60mm) | - | -40°C ~ 165°C | 100 kHz | 0.140" (3.55mm) |
|
MPIA4020V2-100-RFIXED IND 10UH 1.7A 281 MOHM SMD |
3,067 | - |
|
数据表 |
MPIA40-V2 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Metal Composite | ±20% | 1.7 A | 2.2A | - | Shielded | 281mOhm Max | 10 µH | - | 17MHz | Surface Mount | AEC-Q200 | 0.195" L x 0.165" W (4.95mm x 4.20mm) | - | -55°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|
5900-393-RCFIXED IND 39MH 120MA 31 OHM TH |
1,179 | - |
|
数据表 |
5900 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | ±10% | 120 mA | 130mA | - | Unshielded | 31Ohm Max | 39 mH | - | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - | -55°C ~ 105°C | 1 kHz | - |
|
|
5900-562-RCFIXED IND 5.6MH 320MA 4.1 OHM TH |
1,030 | - |
|
数据表 |
5900 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | ±10% | 320 mA | 350mA | - | Unshielded | 4.1Ohm Max | 5.6 mH | - | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - | -55°C ~ 105°C | 1 kHz | - |
|
SBC6-681-631FIXED IND 680UH 630MA 980MOHM TH |
508 | - |
|
数据表 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 630 mA | 1.3A | - | Unshielded | 980mOhm Max | 680 µH | - | - | Through Hole | - | 0.472" Dia (12.00mm) | - | -20°C ~ 105°C | 10 kHz | 0.728" (18.50mm) |
|
PA2729.283NLFIXED IND 28.1UH 7.8A 14MOHM SMD |
965 | - |
|
数据表 |
PA2729.XXXNL | Nonstandard | Tray | Active | Wirewound | - | ±15% | 7.8 A | 9A | - | Shielded | 14mOhm Max | 28.1 µH | - | - | Surface Mount | - | 0.875" L x 0.750" W (22.23mm x 19.05mm) | - | -55°C ~ 130°C | - | 0.480" (12.20mm) |
|
SLF12565T-330M2R8-HFIXED IND 33UH 2.8A 48.72MOHM SM |
1,958 | - |
|
数据表 |
SLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | ±20% | 2.8 A | 2.8A | - | Shielded | 48.72mOhm Max | 33 µH | - | - | Surface Mount | AEC-Q200 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 1 kHz | 0.270" (6.85mm) |
|
P1252.782NLTFIXED IND 7.8UH 7.5A 18 MOHM SMD |
1,674 | - |
|
数据表 |
P1252NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 7.5 A | 11A | - | Unshielded | 18mOhm Max | 7.8 µH | - | - | Surface Mount | - | 0.879" L x 0.596" W (22.33mm x 15.14mm) | - | -40°C ~ 130°C | 100 kHz | 0.295" (7.49mm) |
|
|
SLF12565T-4R2N5R5-HFIXED IND 4.2UH 5.5A 13.44 MOHM |
1,055 | - |
|
数据表 |
SLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | ±30% | 5.5 A | 7.3A | - | Shielded | 13.44mOhm Max | 4.2 µH | - | - | Surface Mount | AEC-Q200 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 1 kHz | 0.270" (6.85mm) |
|
SNT-D10CMC 2.5UH 3A 2LN TH |
704 | - |
|
数据表 |
SNT | Vertical, 2 PC Pin | Bulk | Active | Toroidal | Nickel Zinc Ferrite (NiZn) | - | 3 A | - | Nonstandard, 2 Lead | Unshielded | 25mOhm | 2.5 µH | - | - | Through Hole | - | 0.374" L x 0.236" W (9.50mm x 6.00mm) | - | -20°C ~ 60°C | 100 kHz | 0.500" (12.70mm) |
|
|
SLF12565T-101M1R6-HFIXED IND 100UH 1.6A 147.6 MOHM |
480 | - |
|
数据表 |
SLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | ±20% | 1.6 A | 1.6A | - | Shielded | 147.6mOhm Max | 100 µH | - | - | Surface Mount | AEC-Q200 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 1 kHz | 0.270" (6.85mm) |
|
7847111100WE-RCIT ROD CORE INDUCTOR THT 10 |
421 | - |
|
数据表 |
WE-RCIT | Radial, Horizontal Cylinder (Open) | Tray | Active | Wirewound | - | ±25% | 3 A | 7A | Radial | Unshielded | 33mOhm | 10 µH | - | 90MHz | Through Hole | AEC-Q200 | 0.205" Dia x 0.728" L (5.20mm x 18.50mm) | - | -40°C ~ 150°C | 10 kHz | - |
|
|
SLF12565T-102MR45-HFIXED IND 1MH 500MA 2.016OHM SMD |
190 | - |
|
数据表 |
SLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | ±20% | 500 mA | 450mA | - | Shielded | 2.016Ohm Max | 1 mH | - | - | Surface Mount | AEC-Q200 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 1 kHz | 0.270" (6.85mm) |
|
|
SLF12565T-680M2R0-HFIXED IND 68UH 2A 94.44 MOHM SMD |
136 | - |
|
数据表 |
SLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | ±20% | 2 A | 2A | - | Shielded | 94.44mOhm Max | 68 µH | - | - | Surface Mount | AEC-Q200 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 1 kHz | 0.270" (6.85mm) |
|
PA5175.562NLTFIXED IND 5.6UH 7.2A 24.2MOHM SM |
10,685 | - |
|
数据表 |
PA5175.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 7.2 A | 7.2A | - | Unshielded | 24.2mOhm Max | 5.6 µH | - | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | - | -55°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
