固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DLH-22-0002FIXED IND 3MH 600MA 1.55 OHM TH SCHURTER Inc. |
21 | - |
|
数据表 |
DLH | Radial, Horizontal - Corner Terminals | Bulk | Active | - | - | ±15% | 600 mA | - | - | Shielded | 1.55Ohm | 3 mH | - | - | Through Hole | - | 0.906" L x 0.512" W (23.00mm x 13.00mm) | - | -40°C ~ 125°C | - | 0.945" (24.00mm) |
|
DLH-22-0007FIXED IND 50UH 4.5A 30 MOHM TH SCHURTER Inc. |
0 | - |
|
数据表 |
DLH | Radial, Horizontal - Corner Terminals | Bulk | Active | - | - | ±15% | 4.5 A | - | - | Shielded | 30mOhm | 50 µH | - | - | Through Hole | - | 0.906" L x 0.512" W (23.00mm x 13.00mm) | - | -40°C ~ 125°C | - | 0.945" (24.00mm) |
|
|

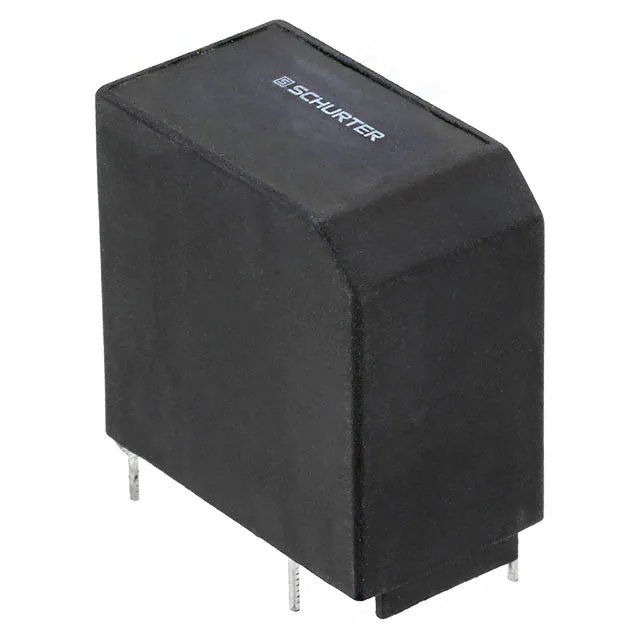

DLH-31-0007FIXED IND 130UH 4A 53 MOHM TH SCHURTER Inc. |
1 | - |
|
数据表 |
DLH | Radial, Horizontal, 4 Leads | Bulk | Active | - | - | ±15% | 4 A | - | - | Shielded | 53mOhm | 130 µH | - | - | Through Hole | - | 1.240" L x 0.728" W (31.50mm x 18.50mm) | - | -40°C ~ 125°C | - | 1.299" (33.00mm) |
|
|
DLH-31-0001FIXED IND 5.5MH 600MA 3.6 OHM TH SCHURTER Inc. |
0 | - |
|
数据表 |
DLH | Radial, Horizontal, 4 Leads | Bulk | Active | - | - | ±15% | 600 mA | - | - | Shielded | 3.6Ohm | 5.5 mH | - | - | Through Hole | - | 1.240" L x 0.728" W (31.50mm x 18.50mm) | - | -40°C ~ 125°C | - | 1.299" (33.00mm) |
|
|
DLH-31-0005FIXED IND 300UH 2.5A 160 MOHM TH SCHURTER Inc. |
15 | - |
|
数据表 |
DLH | Radial, Horizontal, 4 Leads | Bulk | Active | - | - | ±15% | 2.5 A | - | - | Shielded | 160mOhm | 300 µH | - | - | Through Hole | - | 1.240" L x 0.728" W (31.50mm x 18.50mm) | - | -40°C ~ 125°C | - | 1.299" (33.00mm) |
|

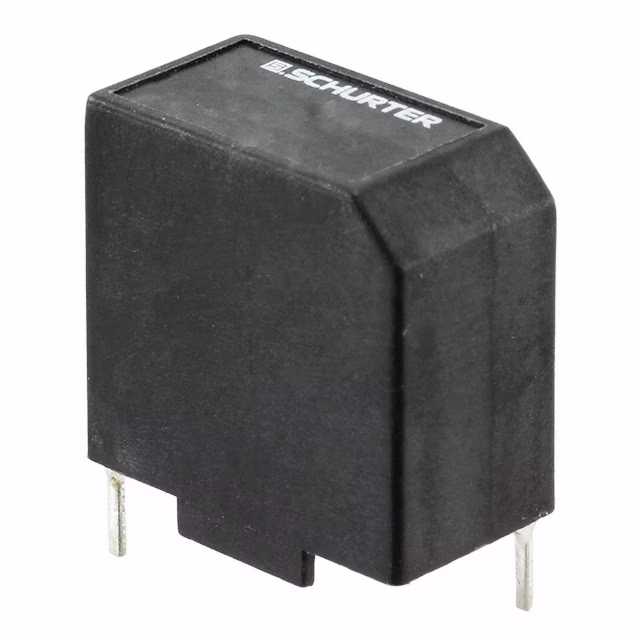

DSH-22-0005FIXED IND 1.8A 90 MOHM TH SCHURTER Inc. |
3 | - |
|
数据表 |
DSH | Radial, Horizontal - Corner Terminals | Bulk | Active | - | - | - | 1.8 A | - | - | - | 90mOhm | - | - | - | Through Hole | - | 0.906" L x 0.512" W (23.00mm x 13.00mm) | - | -40°C ~ 125°C | - | - |
|
|
DSH-22-0006FIXED IND 3.15A 33 MOHM TH SCHURTER Inc. |
3 | - |
|
数据表 |
DSH | Radial, Horizontal - Corner Terminals | Bulk | Active | - | - | - | 3.15 A | - | - | - | 33mOhm | - | - | - | Through Hole | - | 0.906" L x 0.512" W (23.00mm x 13.00mm) | - | -40°C ~ 125°C | - | - |
|
|
DSH-22-0001FIXED IND 450MA 1.25 OHM TH SCHURTER Inc. |
0 | - |
|
数据表 |
DSH | Radial, Horizontal - Corner Terminals | Bulk | Active | - | - | - | 450 mA | - | - | - | 1.25Ohm | - | - | - | Through Hole | - | 0.906" L x 0.512" W (23.00mm x 13.00mm) | - | -40°C ~ 125°C | - | - |
|
|
DSH-22-0003FIXED IND 1A 300 MOHM TH SCHURTER Inc. |
0 | - |
|
数据表 |
DSH | Radial, Horizontal - Corner Terminals | Bulk | Active | - | - | - | 1 A | - | - | - | 300mOhm | - | - | - | Through Hole | - | 0.906" L x 0.512" W (23.00mm x 13.00mm) | - | -40°C ~ 125°C | - | - |
|
|
DSH-22-0004FIXED IND 1.4A 160 MOHM TH SCHURTER Inc. |
0 | - |
|
数据表 |
DSH | Radial, Horizontal - Corner Terminals | Bulk | Active | - | - | - | 1.4 A | - | - | - | 160mOhm | - | - | - | Through Hole | - | 0.906" L x 0.512" W (23.00mm x 13.00mm) | - | -40°C ~ 125°C | - | - |
