固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DLH-14-0002FIXED IND 200UH 1A 220 MOHM TH SCHURTER Inc. |
133 | - |
|
数据表 |
DLH | Radial, Horizontal - Corner Terminals | Bulk | Active | - | - | ±15% | 1 A | - | - | Shielded | 220mOhm | 200 µH | - | - | Through Hole | - | 0.591" L x 0.413" W (15.00mm x 10.50mm) | - | -40°C ~ 125°C | - | - |
|
DLH-31-0003FIXED IND 800UH 1.6A 470 MOHM TH SCHURTER Inc. |
95 | - |
|
数据表 |
DLH | Radial, Horizontal, 4 Leads | Bulk | Active | - | - | ±15% | 1.6 A | - | - | Shielded | 470mOhm | 800 µH | - | - | Through Hole | - | 1.240" L x 0.728" W (31.50mm x 18.50mm) | - | -40°C ~ 125°C | - | 1.299" (33.00mm) |
|
DSH-14-0001FIXED IND 600MA 280 MOHM TH SCHURTER Inc. |
90 | - |
|
数据表 |
DSH | Radial, Horizontal - Corner Terminals | Bulk | Active | - | - | - | 600 mA | - | - | - | 280mOhm | - | - | - | Through Hole | - | 0.591" L x 0.413" W (15.00mm x 10.50mm) | - | -40°C ~ 125°C | - | - |
|
|
DLH-31-0008FIXED IND 50UH 6.3A 23 MOHM TH SCHURTER Inc. |
100 | - |
|
数据表 |
DLH | Radial, Horizontal, 4 Leads | Bulk | Active | - | - | ±15% | 6.3 A | - | - | Shielded | 23mOhm | 50 µH | - | - | Through Hole | - | 1.240" L x 0.728" W (31.50mm x 18.50mm) | - | -40°C ~ 125°C | - | 1.299" (33.00mm) |
|
DSH-22-0002FIXED IND 630MA 750 MOHM TH SCHURTER Inc. |
40 | - |
|
数据表 |
DSH | Radial, Horizontal - Corner Terminals | Bulk | Active | - | - | - | 630 mA | - | - | - | 750mOhm | - | - | - | Through Hole | - | 0.906" L x 0.512" W (23.00mm x 13.00mm) | - | -40°C ~ 125°C | - | - |
|
DFSG-30-0001FIXED IND 3A 165 MOHM TH SCHURTER Inc. |
80 | - |
|
数据表 |
DFSG | Radial, Horizontal - Corner Terminals | Bulk | Active | - | - | - | 3 A | - | - | - | 165mOhm | - | - | - | Through Hole | - | 1.181" L x 1.181" W (30.00mm x 30.00mm) | - | -25°C ~ 100°C | - | - |
|

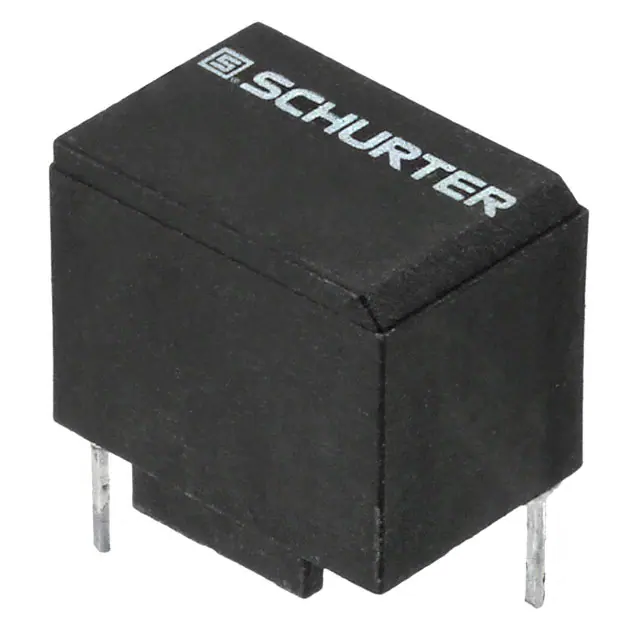

DLH-14-0003FIXED IND 50UH 2A 50 MOHM TH SCHURTER Inc. |
76 | - |
|
数据表 |
DLH | Radial, Horizontal - Corner Terminals | Bulk | Active | - | - | ±15% | 2 A | - | - | Shielded | 50mOhm | 50 µH | - | - | Through Hole | - | 0.591" L x 0.413" W (15.00mm x 10.50mm) | - | -40°C ~ 125°C | - | - |
|

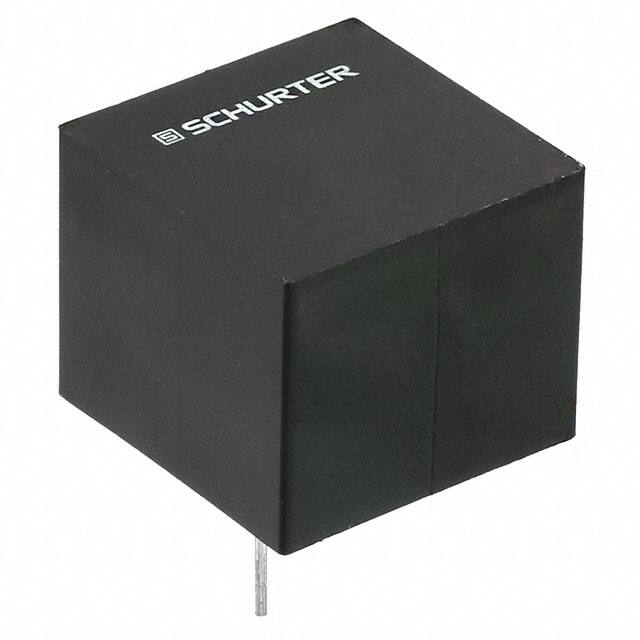

DFSG-20-0001FIXED IND 800MA 1.3 OHM TH SCHURTER Inc. |
80 | - |
|
数据表 |
DFSG | Radial, Horizontal - Corner Terminals | Bulk | Active | - | - | - | 800 mA | - | - | - | 1.3Ohm | - | - | - | Through Hole | - | 0.709" L x 0.709" W (18.00mm x 18.00mm) | - | -25°C ~ 100°C | - | - |
|
DFSG-20-0002FIXED IND 1.5A 450 MOHM TH SCHURTER Inc. |
79 | - |
|
数据表 |
DFSG | Radial, Horizontal - Corner Terminals | Bulk | Active | - | - | - | 1.5 A | - | - | - | 450mOhm | - | - | - | Through Hole | - | 0.709" L x 0.709" W (18.00mm x 18.00mm) | - | -25°C ~ 100°C | - | - |
|
DFSG-25-0002FIXED IND 3A 100 MOHM TH SCHURTER Inc. |
50 | - |
|
数据表 |
DFSG | Radial, Horizontal - Corner Terminals | Bulk | Active | - | - | - | 3 A | - | - | - | 100mOhm | - | - | - | Through Hole | - | 0.886" L x 0.886" W (22.50mm x 22.50mm) | - | -25°C ~ 100°C | - | - |
