固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

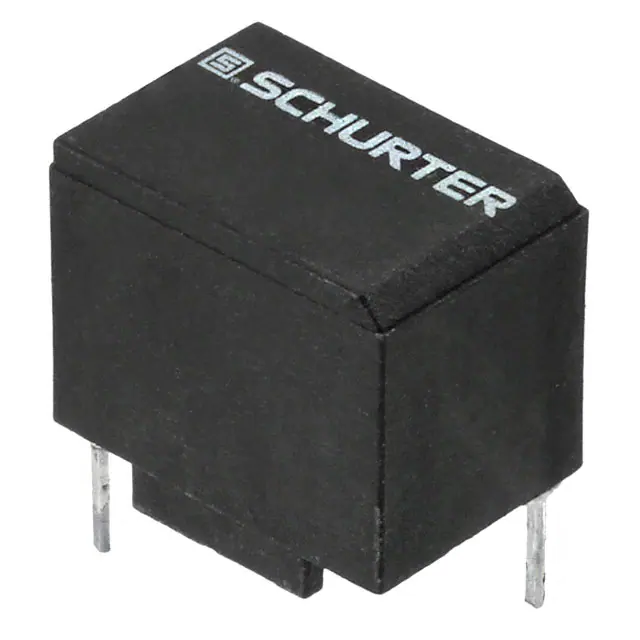

DLH-14-0001FIXED IND 500UH 600MA 750MOHM TH SCHURTER Inc. |
253 | - |
|
数据表 |
DLH | Radial, Horizontal - Corner Terminals | Bulk | Active | - | - | ±15% | 600 mA | - | - | Shielded | 750mOhm | 500 µH | - | - | Through Hole | - | 0.591" L x 0.413" W (15.00mm x 10.50mm) | - | -40°C ~ 125°C | - | - |
|

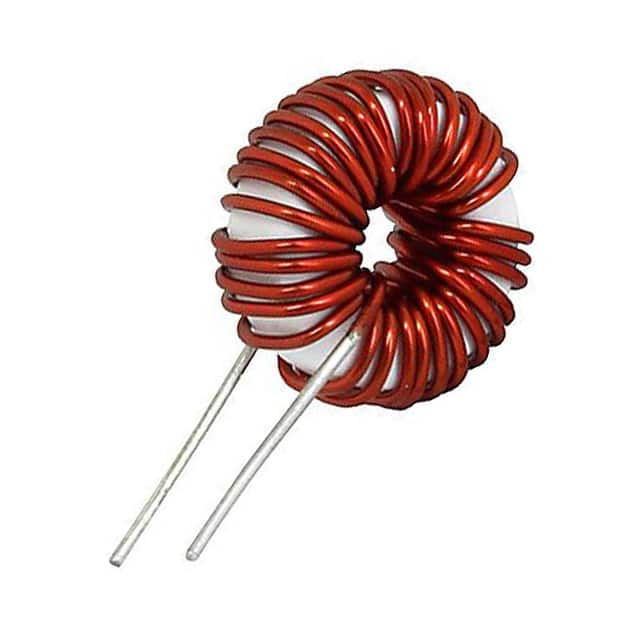

DLO1-24-0002FIXED IND 4.5A 26 MOHM TH SCHURTER Inc. |
149 | - |
|
数据表 |
DLO | Radial, Vertical (Open) | Bulk | Obsolete | - | - | - | 4.5 A | - | - | - | 26mOhm | - | - | - | Through Hole | - | 0.787" Dia x 0.394" W (20.00mm x 10.00mm) | - | -40°C ~ 125°C | - | - |
|
|
DLO1-24-0001FIXED IND 7A 12 MOHM TH SCHURTER Inc. |
158 | - |
|
数据表 |
DLO | Radial, Vertical (Open) | Tape & Reel (TR) | Obsolete | - | - | - | 7 A | - | - | - | 12mOhm | - | - | - | Through Hole | - | 0.787" Dia x 0.394" W (20.00mm x 10.00mm) | - | -40°C ~ 125°C | - | - |
|
|
DLO1-24-0005FIXED IND 1.5A 280 MOHM TH SCHURTER Inc. |
150 | - |
|
数据表 |
DLO | Radial, Vertical (Open) | Bulk | Obsolete | - | - | - | 1.5 A | - | - | - | 280mOhm | - | - | - | Through Hole | - | 0.787" Dia x 0.394" W (20.00mm x 10.00mm) | - | -40°C ~ 125°C | - | - |
|
DENO-23-0001FIXED IND 16A 15 MOHM TH SCHURTER Inc. |
648 | - |
|
数据表 |
DENO | Radial, Vertical (Open) | Bulk | Active | - | - | - | 16 A | - | - | - | 15mOhm | - | - | - | Through Hole | - | 0.906" Dia x 0.394" W (23.00mm x 10.00mm) | - | -25°C ~ 100°C | - | - |
|
DENO-25-0001FIXED IND 16A 27 MOHM TH SCHURTER Inc. |
90 | - |
|
数据表 |
DENO | Radial, Vertical (Open) | Bulk | Active | - | - | - | 16 A | - | - | - | 27mOhm | - | - | - | Through Hole | - | 0.984" Dia x 0.709" W (25.00mm x 18.00mm) | - | -25°C ~ 100°C | - | - |
|
DEN-25-0001FIXED IND 16A 27 MOHM CHAS MNT SCHURTER Inc. |
87 | - |
|
数据表 |
DEN | Nonstandard | Bulk | Active | - | - | - | 16 A | - | - | - | 27mOhm | - | - | - | Chassis Mount | - | 1.575" L x 1.575" W (40.00mm x 40.00mm) | - | -25°C ~ 100°C | - | - |
|
DLH-22-0001FIXED IND 5MH 450MA 2.6 OHM TH SCHURTER Inc. |
89 | - |
|
数据表 |
DLH | Radial, Horizontal - Corner Terminals | Bulk | Active | - | - | ±15% | 450 mA | - | - | Shielded | 2.6Ohm | 5 mH | - | - | Through Hole | - | 0.906" L x 0.512" W (23.00mm x 13.00mm) | - | -40°C ~ 125°C | - | 0.945" (24.00mm) |
|

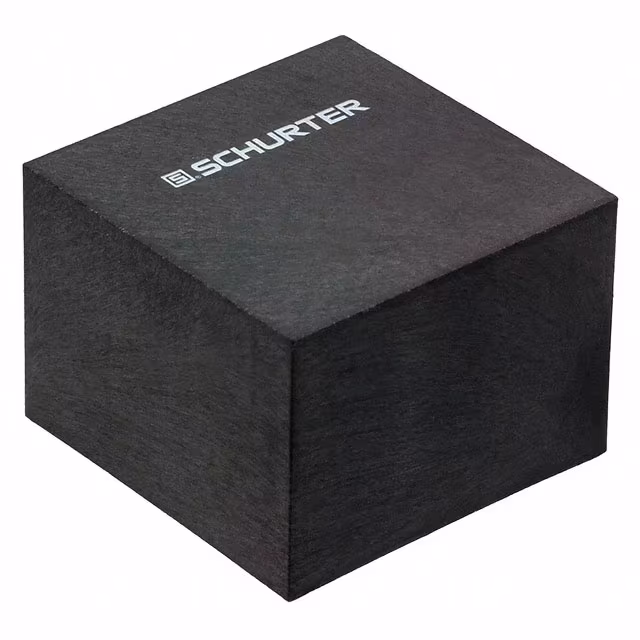

DFSG-30-0002FIXED IND 6A 60 MOHM TH SCHURTER Inc. |
60 | - |
|
数据表 |
DFSG | Radial, Horizontal - Corner Terminals | Bulk | Active | - | - | - | 6 A | - | - | - | 60mOhm | - | - | - | Through Hole | - | 1.181" L x 1.181" W (30.00mm x 30.00mm) | - | -25°C ~ 100°C | - | - |
|
DFSG-33-0002FIXED IND 10A 30 MOHM TH SCHURTER Inc. |
55 | - |
|
数据表 |
DFSG | Radial, Horizontal - Corner Terminals | Bulk | Active | - | - | - | 10 A | - | - | - | 30mOhm | - | - | - | Through Hole | - | 1.299" L x 1.299" W (33.00mm x 33.00mm) | - | -25°C ~ 100°C | - | - |
