交流直流桌面、墙式电源适配器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 特性 | 功率（瓦特） | 空载功耗 | 输入类型 | 极化 | 应用 | 输入连接器 | 效率 | 尺寸 / 尺寸 | 电线长度 | 工作温度 | 输出连接器 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WR9QX833LCPNNAR6BAC/DC WALL MOUNT ADAPTER 48V 40W |
8 | - |
|
数据表 |
GTM46402-40VV-x.x-Q | Bulk | Active | International | Wall Mount (Class II) | 90 ~ 264 VAC | 48V | 830mA | - | 40 W | 75mW (Max) | Multi-Blade (Sold Separately) | Positive Center | Household Appliances, ITE (Commercial), Medical | Multi-Blade (Sold Separately) | Level VI | 1.71" L x 2.91" W x 1.39" H (43.5mm x 74.0mm x 35.3mm) | 47.2" (1.20m) | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | CB, CCC, CE, cETLus, EAC, ETL, FCC, LPS, PSE, RCM, UKRSepro, UL, VCCI | |
|

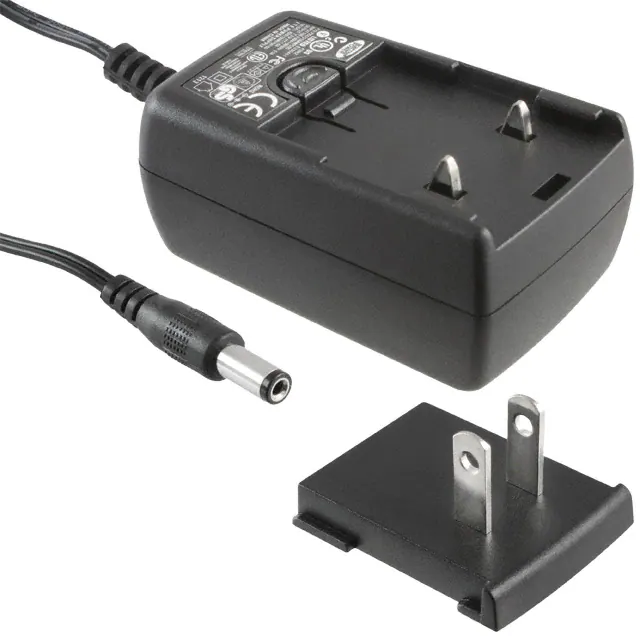

750-00009AC/DC WALL MNT ADAPTER 7.5V 12W |
0 | - |
|
数据表 |
- | Box | Discontinued at Digi-Key | International | Wall Mount (Class II) | 90 ~ 264 VAC | 7.5V | 1.6A | - | 12 W | 100mW (Max) | Multi-Blade (Included) | Positive Center | ITE (Commercial) | Multi-Blade | Level VI | - | 72" (1.83m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | - | |
|
SDI40-12-UDC-P5AC/DC DESKTOP ADAPTER 12V 36W |
0 | - |
|
数据表 |
SDI40-UD (40W) | Box | Obsolete | North America | Desktop (Class II) | 90 ~ 264 VAC | 12V | 3A | - | 36 W | 75mW (Max) | Cord | Positive Center | ITE (Commercial) | IEC 320-C8 | Level VI | 4.37" L x 2.05" W x 1.27" H (111.0mm x 52.0mm x 32.3mm) | 60.2" (1.53m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CE, cULus, GS, PSE | |
|
WR9QH2200LRPNNAR6BAC/DC WALL MOUNT ADAPTER 18V 40W |
0 | - |
|
数据表 |
GTM46402-4018 | Bulk | Active | North America | Wall Mount (Class II) | 90 ~ 264 VAC | 18V | 2.2A | - | 40 W | 75mW (Max) | Multi-Blade (Included) | Positive Center | ITE (Commercial), Medical | Multi-Blade (Included) | Level VI, CoC Tier 2 | 2.91" L x 1.71" W x 1.39" H (74.0mm x 43.5mm x 35.3mm) | 47.2" (1.20m) | -20°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CB, CCC, CE, cETLus, EAC, ETL, FCC, LPS, PSE, RCM, UKCA, Ukraine, UL, VCCI, WEEE | |
|
TRH25180-A-01E03 VIAC/DC WALL MOUNT ADAPTER 18V 25W |
5 | - |
|
数据表 |
TRH25 (25W) | Box | Obsolete | North America | Wall Mount (Class II) | 90 ~ 264 VAC | 18V | 1.4A | - | 25 W | 75mW (Max) | Fixed Blade | - | ITE (Commercial) | NEMA 1-15P | Level VI, CoC Tier 2 | 2.84" L x 1.38" W x 2.05" H (72.0mm x 35.0mm x 52.0mm) | 70.9" (1.80m) | -20°C ~ 60°C | - | CE, cULus, GS, TUV | |
|
TRH25240-A-01E03 VIAC/DC WALL MOUNT ADAPTER 24V 25W |
4 | - |
|
数据表 |
TRH25 (25W) | Box | Obsolete | North America | Wall Mount (Class II) | 90 ~ 264 VAC | 24V | 1.05A | - | 25 W | 75mW (Max) | Fixed Blade | - | ITE (Commercial) | NEMA 1-15P | Level VI, CoC Tier 2 | 2.84" L x 1.38" W x 2.05" H (72.0mm x 35.0mm x 52.0mm) | 70.9" (1.80m) | -20°C ~ 60°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | CE, cULus, GS, TUV | |
|
TRH25180-A-11E03 VIAC/DC WALL MOUNT ADAPTER 18V 25W |
1 | - |
|
数据表 |
TRH25 (25W) | Box | Obsolete | North America | Wall Mount (Class II) | 90 ~ 264 VAC | 18V | 1.4A | - | 25 W | 75mW (Max) | Fixed Blade | - | ITE (Commercial) | NEMA 1-15P | Level VI, CoC Tier 2 | 2.84" L x 1.38" W x 2.05" H (72.0mm x 35.0mm x 52.0mm) | 70.9" (1.80m) | -20°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | CE, cULus, GS, TUV | |
|
SMM12-5-4W-P5AC/DC WALL MOUNT ADAPTER 5V 12W |
0 | - |
|
数据表 |
SMM12 (12W) | Box | Active | International | Wall Mount (Class II) | 90 ~ 264 VAC | 5V | 2.4A | - | 12 W | 100mW (Max) | Multi-Blade (Included) | Positive Center | ITE (Commercial), Medical | Multi-Blade (Included) | Level VI | 2.24" L x 1.54" W x 1.34" H (57.0mm x 39.0mm x 34.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CE, cULus, FCC, PSE, TUV | |
|
|
SMM12-5-4W-P6AC/DC WALL MOUNT ADAPTER 5V 12W |
0 | - |
|
数据表 |
SMM12 (12W) | Box | Active | International | Wall Mount (Class II) | 90 ~ 264 VAC | 5V | 2.4A | - | 12 W | 100mW (Max) | Multi-Blade (Included) | Positive Center | ITE (Commercial), Medical | Multi-Blade (Included) | Level VI | 2.24" L x 1.54" W x 1.34" H (57.0mm x 39.0mm x 34.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CE, cULus, FCC, PSE, TUV | |
|
|
SMM12-5-4W-P5RAC-DC, 5 VDC, 2.4 A, SW, MULTI-B |
0 | - |
|
数据表 |
SMM12 (12W) | Box | Active | International | Wall Mount | 90 ~ 264 VAC | 5V | 2.4A | - | 12 W | 100mW | Multi-Blade (Included) | Positive Center | ITE (Commercial), Medical | Multi-Blade (Included) | Level VI | 2.24" L x 1.54" W x 1.34" H (57.0mm x 39.0mm x 34.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CE, cURus, FCC, PSE, TUV | |
|
|
TOL-23584RASPBERRY PI 27W USB-C PD POWER |
0 | - |
|
数据表 |
- | Bag | Active | North America | Wall Mount (Class II) | 100 ~ 240 VAC | 9V, 12V, 15V | 3A, 2.25A, 1.8A | - | 27 W | - | Fixed Blade | - | ITE (Commercial) | NEMA 1-15P | Level VI | - | - | - | USB C Power Delivery (PD) | cULus, FCC | |
|
|
TOL-23583RASPBERRY PI 27W USB-C PD POWER |
0 | - |
|
数据表 |
- | Bag | Active | North America | Wall Mount (Class II) | - | 9V, 12V, 15V | 3A, 2.25A, 1.8A | - | 27 W | - | Fixed Blade | - | ITE (Commercial) | NEMA 1-15P | - | - | - | - | USB C Power Delivery (PD) | - | |
|
|
GSM12U12-P1JAC/DC WALL MNT MED ADPT USA CBL |
0 | - |
|
数据表 |
GSM12U (12W) | Box | Obsolete | North America | Wall Mount (Class II) | 80 ~ 264 VAC, 113 ~ 370 VDC | 12V | 1A | - | 12 W | - | Fixed Blade | Positive Center | Medical | NEMA 1-15P | Level VI | 2.45" L x 1.08" W x 1.79" H (62.2mm x 27.4mm x 45.5mm) | 70.8" (1.80m) | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | cURus, EAC, FCC | |
|
|
GSM12U07-P1JAC/DC WALL MNT MED ADPT USA CBL |
0 | - |
|
数据表 |
GSM12U (12W) | Box | Obsolete | North America | Wall Mount (Class II) | 80 ~ 264 VAC, 113 ~ 370 VDC | 7.5V | 1.6A | - | 12 W | - | Fixed Blade | Positive Center | Medical | NEMA 1-15P | Level VI | 2.45" L x 1.08" W x 1.79" H (62.2mm x 27.4mm x 45.5mm) | 39" (1.00m) | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | cURus, EAC, FCC | |
|
|
GSM12U05-P1JAC/DC WALL MNT ADAPTER USA |
0 | - |
|
数据表 |
GSM12U (12W) | Box | Obsolete | North America | Wall Mount (Class II) | 80 ~ 264 VAC, 113 ~ 370 VDC | 5V | 2.4A | - | 12 W | - | Fixed Blade | Positive Center | Medical | NEMA 1-15P | Level VI | 2.45" L x 1.08" W x 1.79" H (62.2mm x 27.4mm x 45.5mm) | 39" (1.00m) | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | cURus, EAC, FCC | |
|
|
GSM12E05-P1JAC/DC WALL MNT MED ADPT EU CBL C |
0 | - |
|
数据表 |
GSM12E (12W) | Box | Obsolete | Europe | Wall Mount (Class II) | 80 ~ 264 VAC, 113 ~ 370 VDC | 5V | 2.4A | - | 12 W | - | Fixed Blade | Positive Center | Medical | CEE 7/16 | Level VI | 2.45" L x 1.08" W x 1.56" H (62.2mm x 27.4mm x 39.7mm) | 39" (1.00m) | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | CE, EAC, TUV, UKCA | |
|
|
GSM12E48-P1JAC/DC WALL MNT ADAPTER EU CBL |
0 | - |
|
数据表 |
GSM12E (12W) | Box | Obsolete | Europe | Wall Mount (Class II) | 80 ~ 264 VAC, 113 ~ 370 VDC | 48V | 250mA | - | 12 W | - | Fixed Blade | Positive Center | Medical | CEE 7/16 | Level VI | 2.45" L x 1.08" W x 1.56" H (62.2mm x 27.4mm x 39.7mm) | 70.8" (1.80m) | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | CE, EAC, TUV, UKCA | |
|
|
GSM12E07-P1JAC/DC WALL MNT ADAPTER EU CBL |
0 | - |
|
数据表 |
GSM12E (12W) | Box | Obsolete | Europe | Wall Mount (Class II) | 80 ~ 264 VAC, 113 ~ 370 VDC | 7.5V | 1.6A | - | 12 W | - | Fixed Blade | Positive Center | Medical | CEE 7/16 | Level VI | 2.45" L x 1.08" W x 1.56" H (62.2mm x 27.4mm x 39.7mm) | 39" (1.00m) | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | CE, EAC, TUV, UKCA | |
|
|
L6R48D-090-C14PWE SUPP BATTERIES COND |
0 | - |
|
数据表 |
Tri-Mag®, L6R48D (48W) | Bulk | Active | International | Desktop (Class I) | 90 ~ 264 VAC | 9V | 5A | - | 45 W | 100mW | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C14 | Level VI | 4.72" L x 2.01" W x 1.34" H (120.0mm x 51.0mm x 34.0mm) | 39" (1.00m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | cUL, FCC, UL | |
|
|
L6R48D-300PWE SUPP BATTERIES COND |
0 | - |
|
数据表 |
Tri-Mag®, L6R48D (48W) | Bulk | Active | International | Desktop | 90 ~ 264 VAC | 30V | 1.6A | - | 48 W | 100mW | Cord (Sold Separately) | Positive Center | ITE (Commercial) | - | Level VI | 4.72" L x 2.01" W x 1.34" H (120.0mm x 51.0mm x 34.0mm) | 39" (1.00m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | cUL, FCC, UL |
